Drive shafts for Victory wood chippers and rotary tillers
Victory drive shafts have a valid EU safety certificate and are available in many different versions. All essential spare and wear parts are immediately available from stock.
For all Victory wood chippers and rotary tillers, you can assemble the drive shaft you need for your application with a combination of drive shaft, slip clutch, or fork with shear bolt. The table below shows all technical data.
With the Victory attachment slip clutches, you can retrofit any Victory drive shaft with this safety device if your application requires it.With the shear bolt forks, you can convert a normal drive shaft into a shear bolt drive shaft by replacing the connection fork to the attachment.
✅ ISO 9001 certified production
✅ Compliance with all relevant safety standards such as 2006/42/EC, EN 12965, EN ISO 5674
✅ Spare and wear parts immediately available
| Type / Minimum length (mm) | 540 rpm HP / kW / Nm |
1000 rpm HP / kW / Nm |
Universal joint |
| T4-1000mm used for BX-52/72 wood chipper; HTLG/HTLS rotary tiller | 35 / 26 / 460 | 53 / 39 / 370 | 27 x 74.6mm |
| T5-1000mm | 47 / 35 / 620 | 75 / 55 / 525 | 30.2 x 80mm |
| T6-1000mm used for BX102 wood chipper; HTLU / SB rotary tiller | 55 / 40 / 700 | 83 / 61 / 580 | 30.2 x 92mm |
| T8-1000mm used for HTLX rotary tiller | 90 / 66 / 1165 | 136 / 100 / 955 | 35 x 106.5mm |
| T9-1000mm with shear bolt used for HTLX rotary tiller | 120 / 88 / 1560 | 190 / 139 / 1340 | 41 x 108mm |

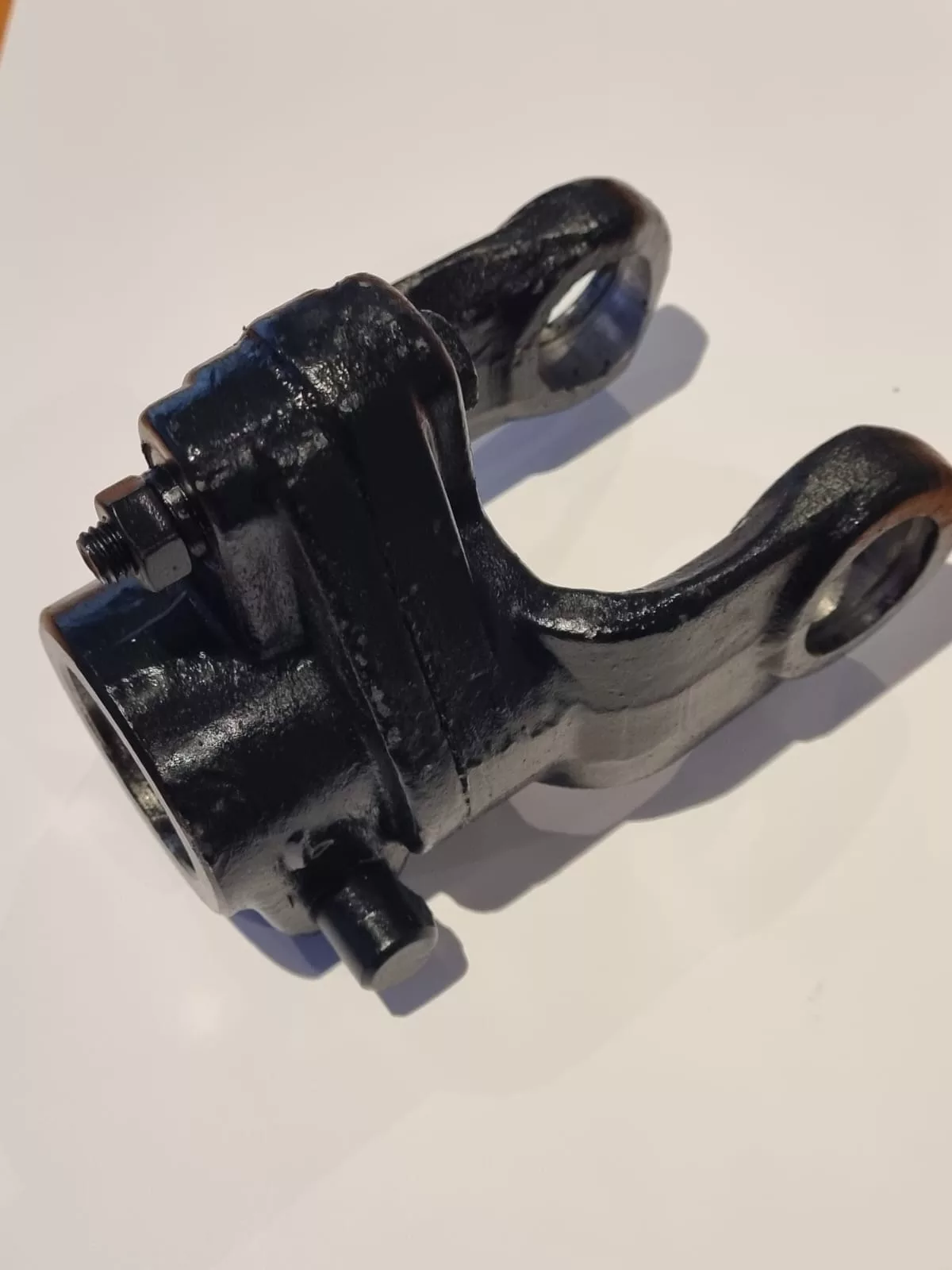

| T4 fork with shear bolt device for converting a normal T4 drive shaft to shear bolt safety | |||

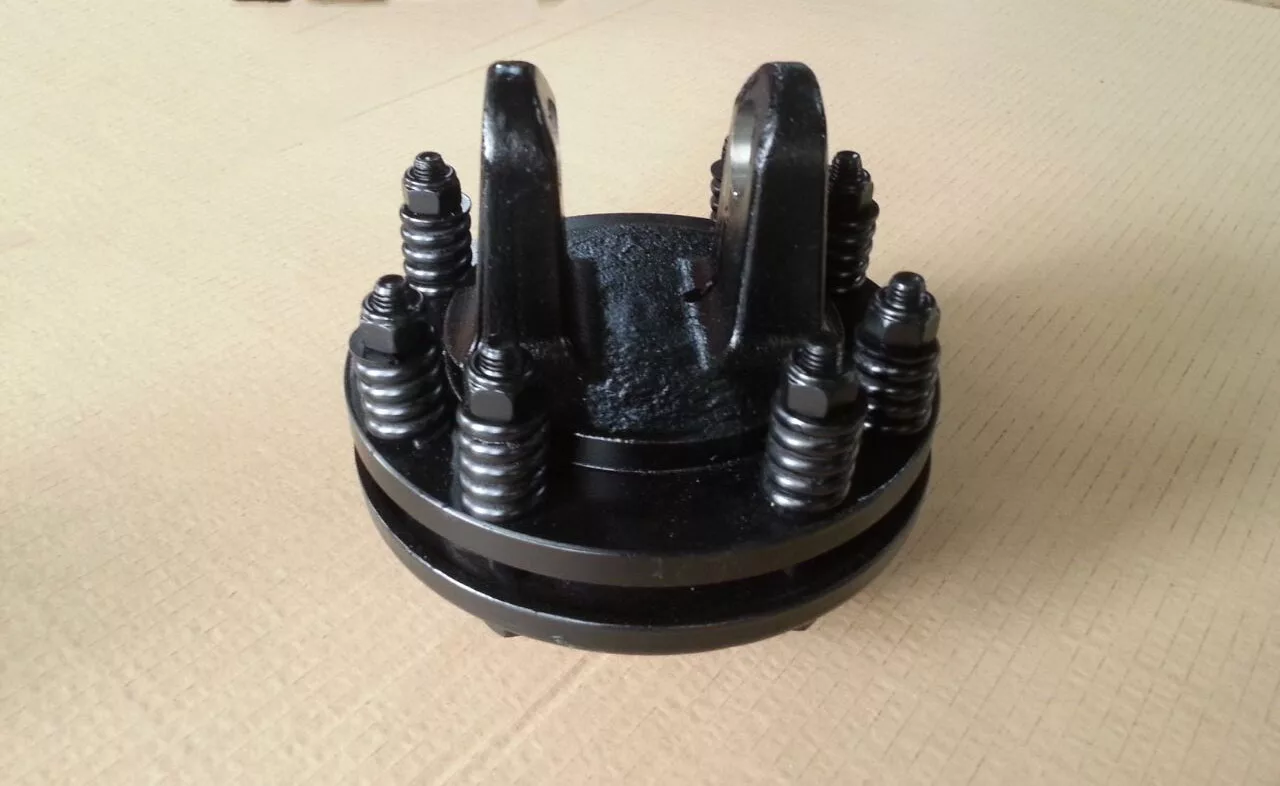

| FFVS1 attachment slip clutch; max. 900Nm; 2 x 140mm clutch disc | |||
| FFVS4 attachment slip clutch; max. 2000Nm; 4 x 160mm clutch disc | |||

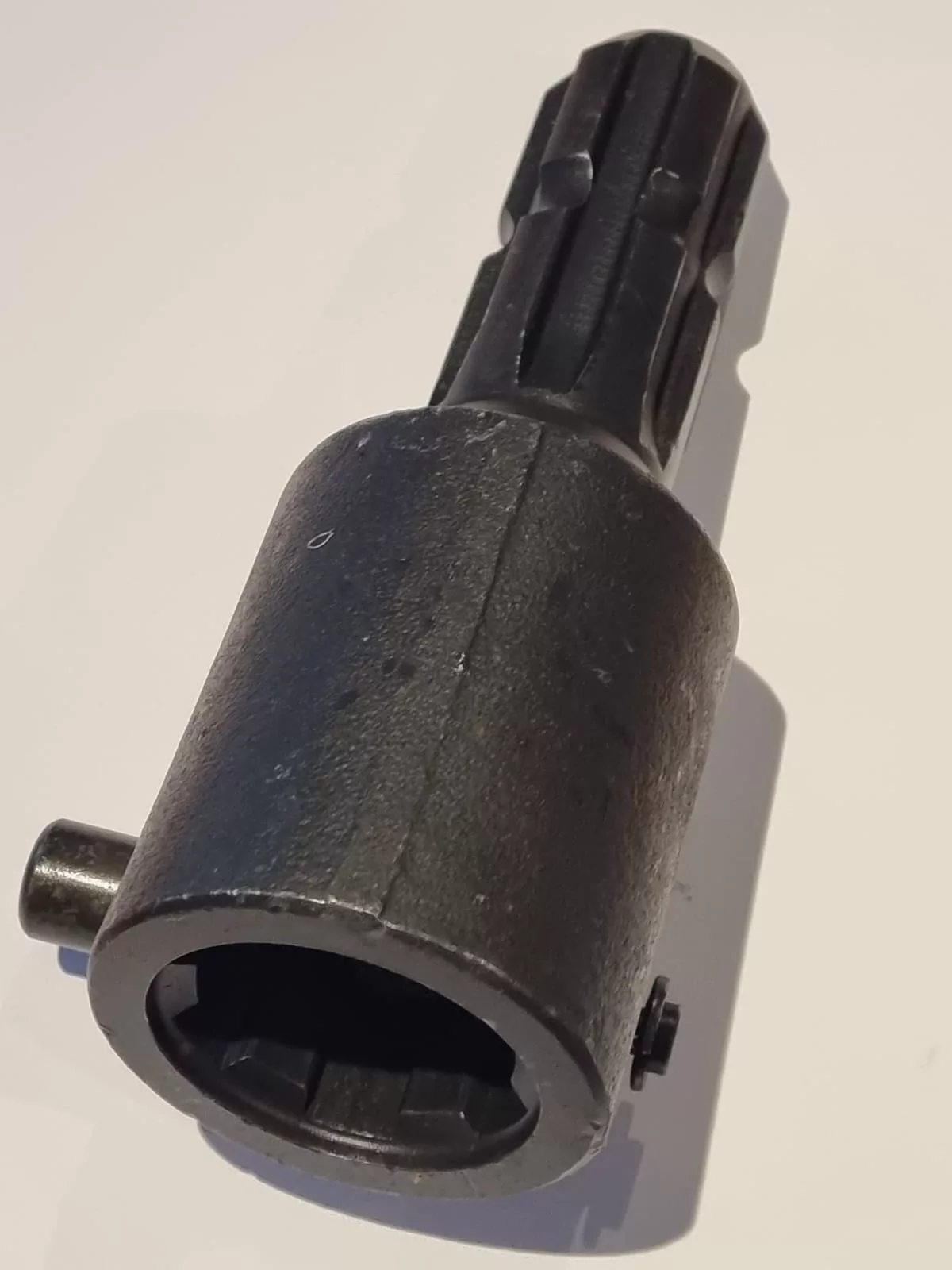

| 1 3/4" adapter specially for BX102 wood chipper |
