BX-52 Tractor wood shredder wood chipper system
Heavy duty wood shredder with self feeding system for professional and fast wood processing up to 15cm in diameter. Suitable for small and medium tractors between 20 and 50HP with Cat I 3 point hitch
Application:
The Victory BX wood shredders are available in three categories with and without hydraulic feeding system.
The Victory BX-52 is a powerful and robust but easy to handle wood chipper for wood diameter of up to 15cm. The BX-52 wood shredder comes with a PTO shaft with safety shear bolt and includes Cat I upper and lower pins with additional bushings for Cat 2 mounting.To get maximum performance your wood shredder, your tractor should have at least 30HP and a PTO shaft speed of 540 RPM.
The Victory BX-52 is a powerful and robust but easy to handle wood chipper for wood diameter of up to 15cm. The BX-52 wood shredder comes with a PTO shaft with safety shear bolt and includes Cat I upper and lower pins with additional bushings for Cat 2 mounting.To get maximum performance your wood shredder, your tractor should have at least 30HP and a PTO shaft speed of 540 RPM.
Technology:
The direct PTO drive system turns the well balanced 35kg rotor inside the wood chipper with its four 21cm knives from hardened tooling steel.
The fast turning knife rotor is cutting the wood about 35 times per second which pulls in the material. The newly designed counter knife setting of the wood shredder allows a precise 0 - 5mm distance setting to the rotor knives and creates shredded material from 1cm to 3cm in size. The high rotor speed and the specially designed rotor winglets create an air suction inside the wood shredder, which throws out the shredded material and makes wood jams virtually impossible.
The rotor housing is equipped with replaceable branch brakers that will reliably reduce the size of very thin branches with less than 5mm diameter.
The fast turning knife rotor is cutting the wood about 35 times per second which pulls in the material. The newly designed counter knife setting of the wood shredder allows a precise 0 - 5mm distance setting to the rotor knives and creates shredded material from 1cm to 3cm in size. The high rotor speed and the specially designed rotor winglets create an air suction inside the wood shredder, which throws out the shredded material and makes wood jams virtually impossible.
The rotor housing is equipped with replaceable branch brakers that will reliably reduce the size of very thin branches with less than 5mm diameter.
For difficult material like bomboo or pine tree branches your can even use 1000 rpm PTO speed for a limited time as all of our machines use well balanced rotors in the wood chipper that can be run at this speed.
The heavy 16mm rotor disc in the wood chipper is equipped with branch breakers to also process very thin branches. The rotor is directly driven by the PTO shaft which is included in the shipment.
✅ up to 1000 rpm rotor speed
✅ 4 rotor knives cut the wood ûp to 67 times per sec.
✅ PTO shaft with shear bolt
✅ foldable input chute
✅ BX-52 is delivered fully assembled
✅ BX-52 is delivered fully assembled

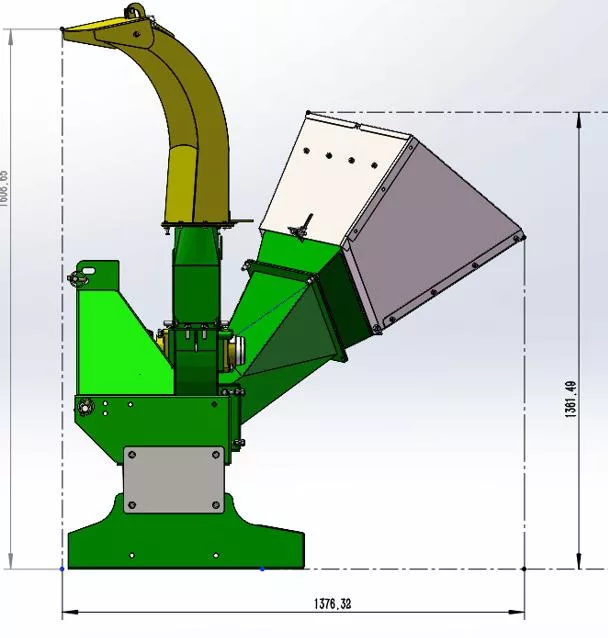

The wood chipper discharge funnel is located in 176cm height and can be turned by 230° with an adjustable throwing angle. The shredded material can be thrown up to 6mtr in distance making it easy to fill trailers or containers. The shredding capacity is 6 - 7 m³/h depending on the type of wood. The BX-52 is designed for easy maintenance. The rotor cover can be opened by removing only one screw to get access to the knives.

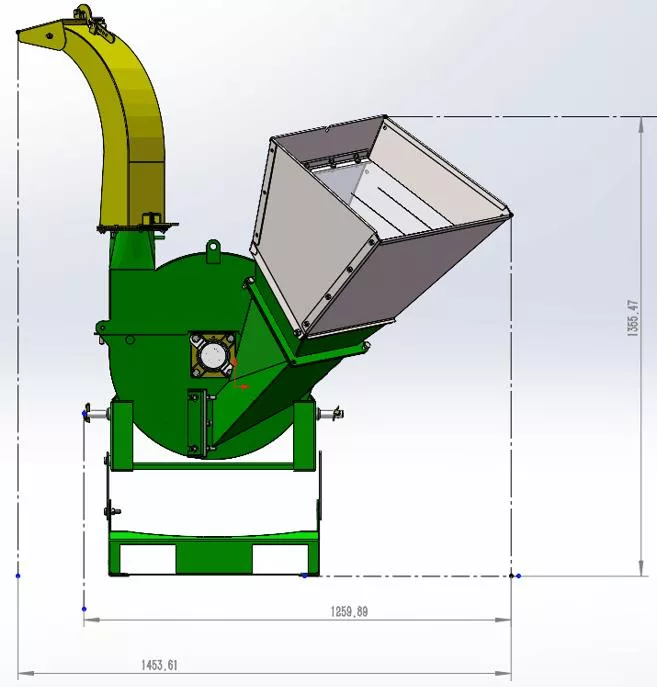

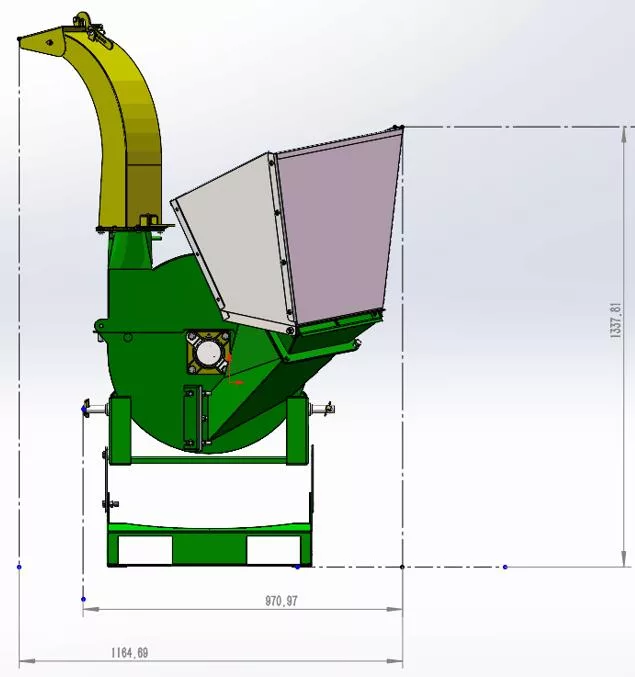

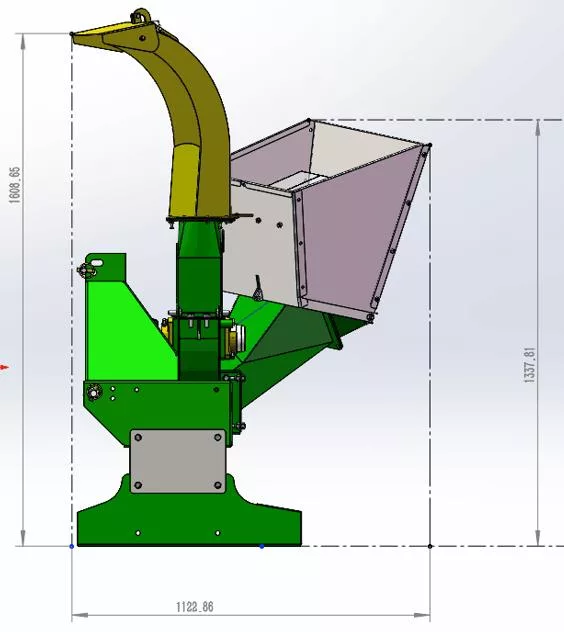

For easy transportation and conveniant storage, the input chute can be lifted up and secured by a pin.
The Victory BX-52 wood shredder wood chipper comply with all safety regulations and is CE tested following the 2006/42/EC machine directive.
The Victory BX-52 wood shredder wood chipper comply with all safety regulations and is CE tested following the 2006/42/EC machine directive.
We from Victory Tractor firmly believe that you will not find a better value for money heavy duty tractor wood shredder in the market. Feel free to compare our product to others in the market and we are sure you will agree.

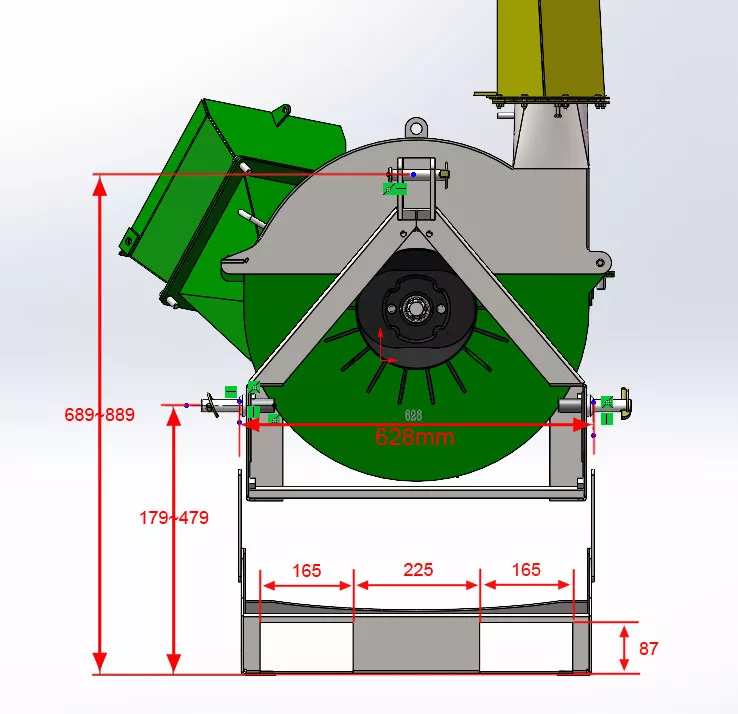

| Technical Data | BX-52 |
| Dimensions (HxWxD) | 1850x138x148mm |
| total weight | 204kg |
| 3-point hitch | CAT I (including CAT 2 bushings) |
| max. PTO shaft RPM | 540/1000 RPM 1 3/8" 6T |
| length of PTO shaft | 700mm |
| PTO security | shear bolt |
| drive system | direct drive |
| lenght of hydraulic pipes | - |
| Tractor engine power recommended | 18-50hp / 13-37kw |
| power neede for max. performance | 30-40hp |
| rotor diameter | 59cm |
| rotor width | 16mm + winglets |
| rotor weight | 35kg |
| number of knifes | 4 + 1 |
| rotor knife size | 21x6x0,9cm |
| counter knife adjusting area | 0 - 5mm |
| hopper opening | 53x53cm |
| chipper housing opening | 14x28cm |
| recommended diameter of shredding material | <10cm |
| size of shredded material | 1 – 3 cm |
| feeding system | self feeding |
| discharge height | 185cm |
| turnable output chute | 230° |
| housing material strength | 6 mm |
| painting | powder coated |
| transport rack (LxWxH) | 115x99x127cm |
