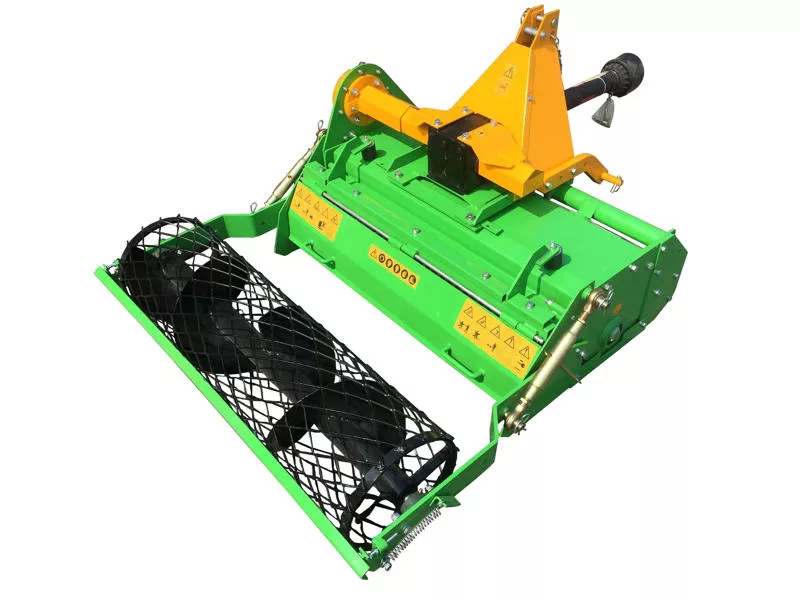

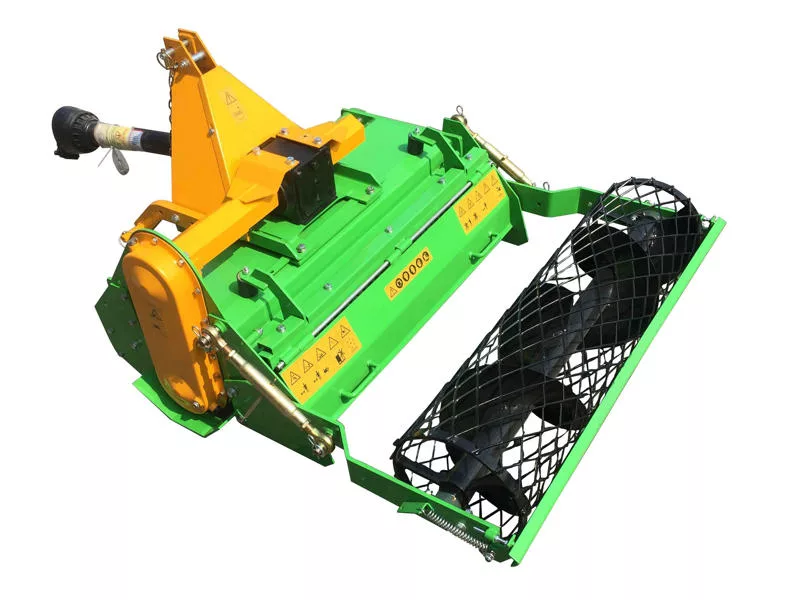

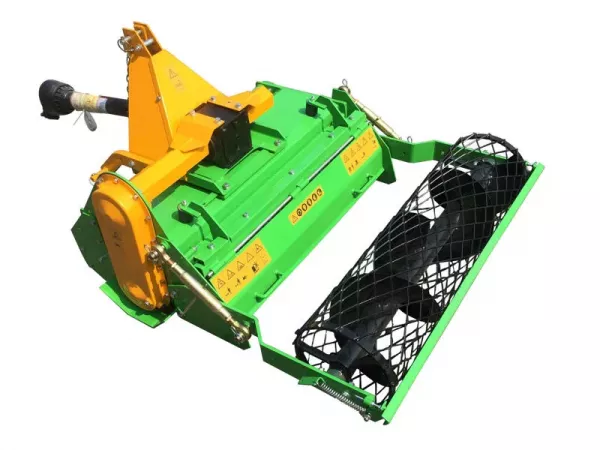

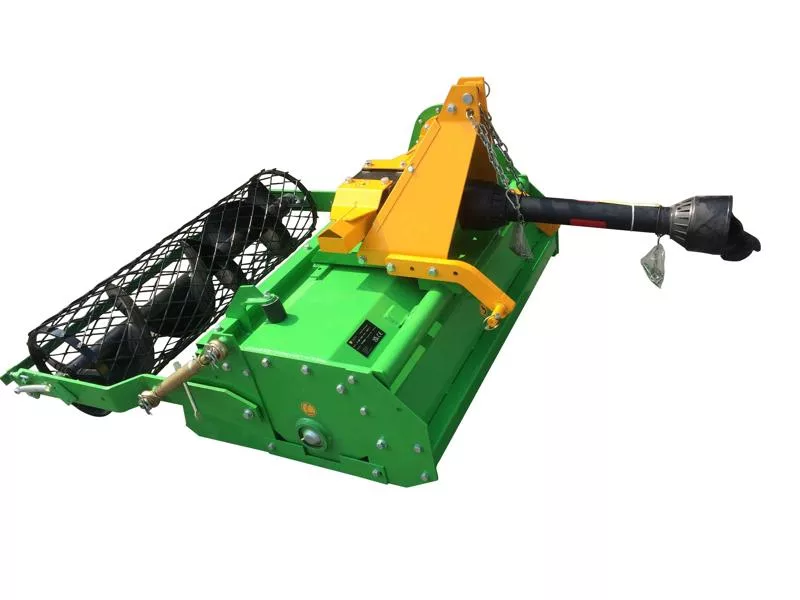

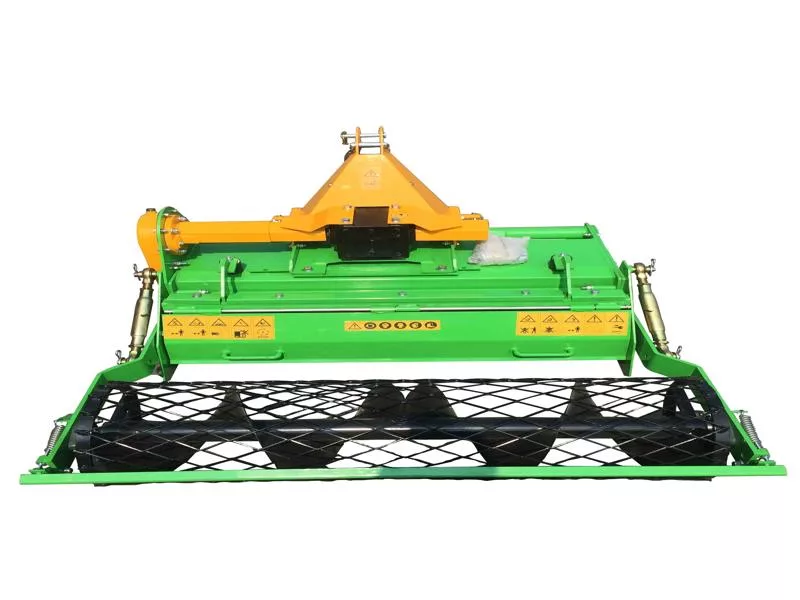

Reversing rotary tiller for working widths between 105 cm and 185 cm with optional seed box
Heavy-duty reversing rotary tiller for small and medium tractors between 20 and 70 HP with Cat. I three-point hitch including PTO shaft with slip clutch
The Victory SB soil reversing rotary tiller complies with all applicable safety regulations and is CE-certified according to the EU Machinery Directive „2006/42/EC“.
➤ For tractors with Cat. I three-point hitch
➤ For tractors from 20-70 HP
➤ Working widths from 105-185 cm
➤ Up to 12 cm working depth
Free delivery ✓
PTO shaft with slip clutch ✓
incl. gear oil ✓
The Victory SB soil reversing rotary tiller is available in the following working widths:
- Victory SB-105 - heavy-duty soil reversing rotary tiller up to 12 cm working depth with 105 cm working width
- Victory SB-125 - heavy-duty soil reversing rotary tiller up to 12 cm working depth with 125 cm working width
- Victory SB-145 - heavy-duty soil reversing rotary tiller up to 12 cm working depth with 145 cm working width
- Victory SB-165 - heavy-duty soil reversing rotary tiller up to 12 cm working depth with 165 cm working width
- Victory SB-185 - heavy-duty soil reversing rotary tiller up to 12 cm working depth with 185 cm working width
Application area of the Victory SB soil reversing rotary tiller
The Victory SB reversing rotary tiller is the ideal rotary tiller for optimal seedbed preparation of the soil and can be operated on any tractor with Cat I three-point hitch. The tiller can be laterally offset by up to 120 mm to cover the tractor track. From now on, there is also an additional seed box for mounting on the reversing rotary tiller for the application of fine seeds such as lawn and wildflowers.
With a working width of up to 185 cm and an adjustable working depth of - depending on soil conditions - up to 12 cm, the Victory SB reversing rotary tiller is clearly superior to conventional reversing rotary tillers from other suppliers in the entry price segment.
Unlike other rotary tillers offered on the market, depending on the working width, we use between 20 and 36 of our 550 g heavy blades made of flexible boron steel, which deliver an optimal result even when hard and heavy soils have to be worked.
There are always 4 blades mounted on a flange of the rotor shaft, so that the soil is optimally and quickly loosened.
Technology of the Victory SB soil reversing rotary tiller

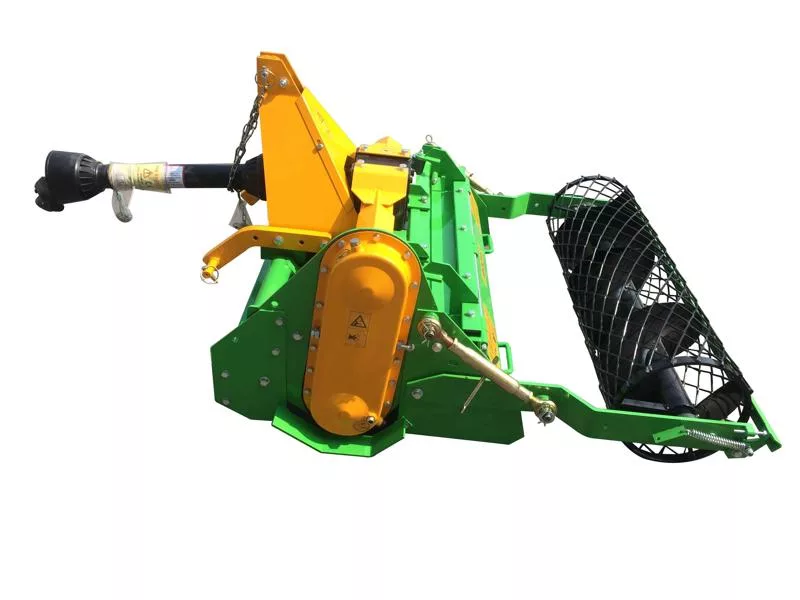

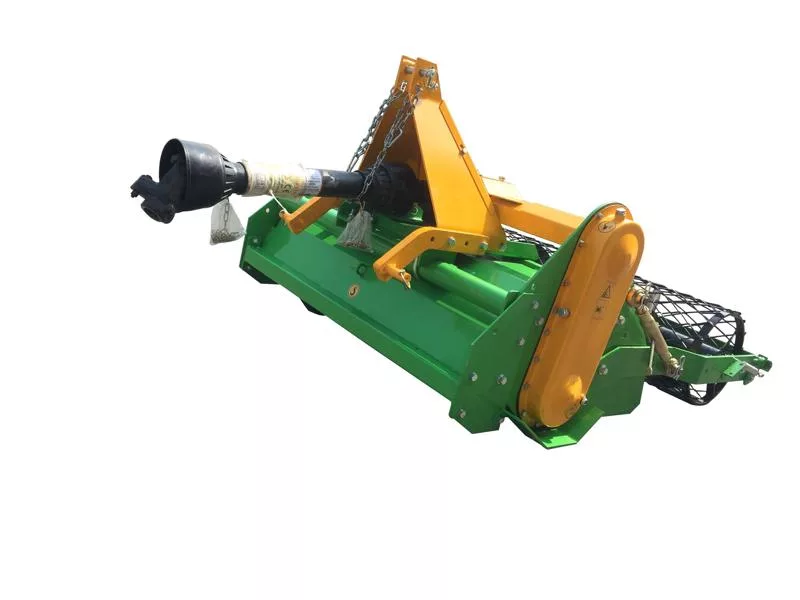

The Victory SB reversing rotary tiller can be laterally offset by up to 120 mm behind the tractor to optimally adapt to the track width of the tractor. The drive of the rotary tiller is via the tractor PTO shaft to a heavy-duty bevel gearbox. The rotor shaft of the reversing rotary tiller is driven by a maintenance-free, oil-bath running, reinforced chain.
The massive, powder-coated housing of the reversing rotary tiller consists of 4 mm thick steel sheet, the side walls even of 8 mm steel, as the laser-balanced rotary shaft of the soil reversing rotary tiller with up to 36 rotary blades is suspended there.
The reinforced freewheel gearbox of the reversing rotary tiller ensures that the heavy shaft can continue to run after switching off the PTO drive without transferring the movement to the tractor.
The massive, powder-coated housing of the reversing rotary tiller consists of 4 mm thick steel sheet, the side walls even of 8 mm steel, as the laser-balanced rotary shaft of the soil reversing rotary tiller with up to 36 rotary blades is suspended there.
The reinforced freewheel gearbox of the reversing rotary tiller ensures that the heavy shaft can continue to run after switching off the PTO drive without transferring the movement to the tractor.
Depending on the working width of the soil reversing rotary tiller, up to 36 blades are mounted spirally on the shaft, which can be replaced individually. The blades of the reversing rotary tiller, made of high-strength aluminum steel, weigh 550 g and loosen the soil with 220 rpm up to 120 mm deep.
The function of a reversing rotary tiller is as ingenious as it is simple. The rotary blades rotating against the direction of travel pick up the soil and throw it against a steel sieve grid. Coarse soil components are sifted through the grid of the rotary tiller, whose bars can be replaced individually, and fall into the tilling pit.The soil cleaned of stones, sods, plant residues, and surface vegetation by the sieve grid of the reversing rotary tiller is neatly deposited above. The rear protective plate of the reversing rotary tiller is height-adjustable to achieve better soil leveling and also serves as a safety cover.

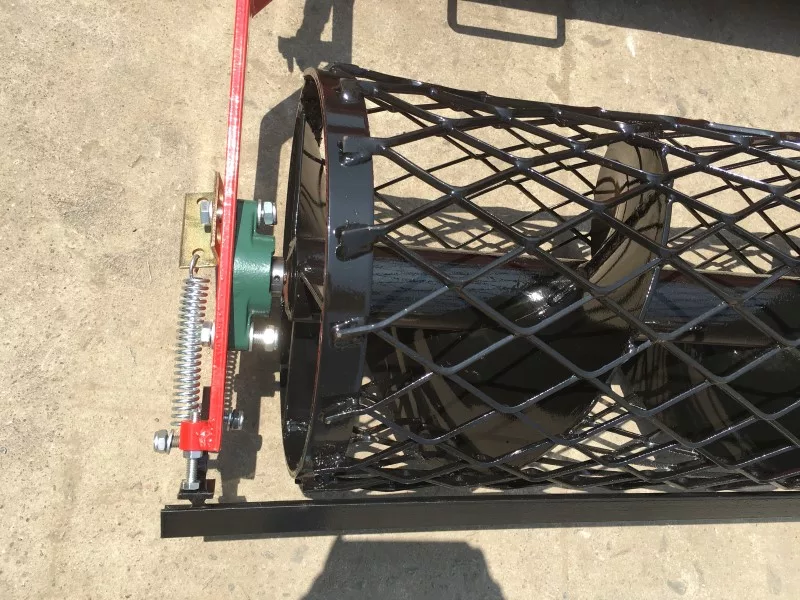

The large, height-adjustable cage roller of the soil reversing rotary tiller presses the worked soil with the two laterally mounted spindles and serves for uniform recompaction of the soil.
The result: A perfectly cleaned, seedbed-prepared and compacted surface.
A PTO shaft with adjustable slip clutch is included in the scope of delivery of the Victory SB reversing rotary tiller, so you can optimally match tractor and soil conditions with the rotary tiller.The gear oil for bevel and side gearboxes is also included in the scope of delivery of the Victory soil reversing rotary tiller.
✅ Side gearbox with maintenance-free oil bath chain drive
✅ Freewheel gearbox protects tractor after PTO shaft is disengaged
✅ Optional seed box for uniform application of fine seeds (lawn, wildflowers, wild fields, etc.)
✅ Optional seed box for uniform application of fine seeds (lawn, wildflowers, wild fields, etc.)

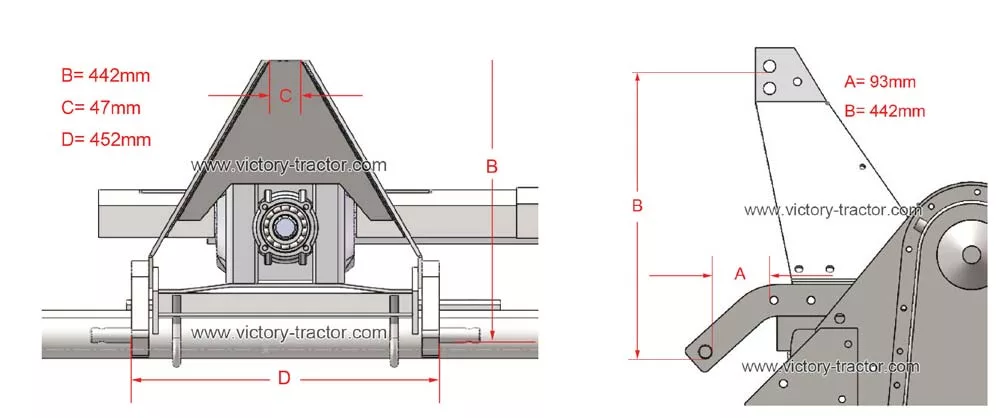

✅ Easy positioning of the rotary tiller by adjustable Cat-1 lower link mounts
✅ Safety rear flap
✅ Safety front cover
✅ Large 450mm crumbler roller
✅ PTO shaft with slip clutch included in delivery
✅ Gear oil included in delivery
✅ Comprehensive German operating manual
✅ Spare parts supply directly via our online shop with exploded view and detailed parts list
We at Victory Tractor are confident that you will not find any other soil reversing rotary tiller with a better price-performance ratio. Please compare our product in detail with other offered reversing rotary tillers, as we are confident you will agree with us.
ATTENTION
Partially assembled working machines delivered do NOT contain ANY operating fluids such as engine and/or gear oil for transport logistics reasons. Lubrication points also contain NO lubricants! Please pay attention to the corresponding instructions in the German operating manual BEFORE commissioning.
| Technical data Victory SB soil reversing rotary tiller | |||||
| DATA | SB-105 | SB-125 | SB-145 | SB-165 | SB-185 |
| Dimensions (LxWxH) mm | 1160 x 1330 x 920 | 2360 x 1330 x 920 | 1560 x 1330 x 920 | 1760 x 1330 x 920 | 1960 x 1330 x 920 |
|---|---|---|---|---|---|
| Total weight incl. PTO shaft kg | 345 | 365 | 395 | 425 | 460 |
| Working width mm | 1050 | 1250 | 1450 | 1650 | 1850 |
| Diameter cage roller mm | 450 | ||||
| Max. working depth (depending on soil conditions) mm | 120 | ||||
| 3-point hitch tractor | Cat 1 | ||||
| PTO shaft clockwise rotation rpm | 540 ; 1 3/8" 6T | ||||
| Length of PTO shaft mm | 1000 | ||||
| PTO shaft safety | adjustable slip clutch | ||||
| Drive | Bevel gearbox + chain in oil bath | ||||
| Gear oil capacity (included in delivery) | 1.5L bevel gearbox, 1.5L side drive | ||||
| Distance from PTO connection to ground mm | 481 | ||||
| Recommended tractor engine power HP / kW | 20-35 / 15-25 | 20-40 / 15-30 | 20-50 / 15-37 | 35-60 / 25-44 | 40-70 / 30-52 |
| Rotor rpm at 540 rpm PTO | 220 | ||||
| Material thickness mower cover mm | 4 | ||||
| Material thickness side walls mm | 8 | ||||
| Coating | Powder coating; grey | ||||
| Number of blades per flange | 4 | ||||
| Number of blades (individually replaceable) | 20 | 24 | 28 | 32 | 36 |
| Rotor shaft diameter / wall thickness mm | 60 / 5 | 60 / 8 | |||
| Weight of rotary blade g | 550 | ||||
| Seed box volume Ltr | 85 | 103 | 121 | 139 | 157 |
| Transport box seed box with trailing roller (LxWxH) cm | 135 x 99 x 80 | 155 x 99 x 80 | 175 x 99 x 80 | 195 x 99 x 80 | 215 x 99 x 80 |
| Transport box seed box weight kg | 245 | 254 | 265 | 276 | 287 |
| Transport box reversing rotary tiller (LxWxH) cm | 141 x 143 x 80 | 161 x 143 x 80 | 181 x 143 x 80 | 201 x 143 x 80 | 221 x 143 x 80 |
| Transport box reversing rotary tiller weight kg | 372 | 398 | 428 | 456 | 490 |
| Transport box seed box with trailing roller (LxWxH) cm | 135 x 99 x 80 | 155 x 99 x 80 | 175 x 99 x 80 | 195 x 99 x 80 | 215 x 99 x 80 |
| Transport box seed box weight kg | 245 | 254 | 265 | 276 | 287 |
