Victory HTLX - heavy high-performance rotary tiller for 70-140 HP tractor

(Item no.: HTLX-310)

Mobile Preview: Rotary tiller Attachment tiller Field tiller Product view Front HTLX 135cm 235cm 285cm 310cm

Mobile Preview: Victory HTLX - heavy high-performance rotary tiller for 70-140 HP tractor

Victory

(Item no.: HTLX-310)

Victory HTLX - heavy high-performance rotary tiller for 70-140 HP tractor

Name: Victory HTLX - heavy high-performance rotary tiller for 70-140 HP tractor
Brand: Victory
Availability: InStock

Delivery time:

IMMEDIATELY AVAILABLE FROM STOCK

For exact availability, please select the working width / version if applicable

Arbeitsbreite HTLX:

DELIVERY: + 200,00 EUR

Truck must bring forklift (+ €200)

Can unload shipment with own forklift independently

from 5.398,00 EUR

Free shipping - all EU countries

incl. 19% VAT

Description

Field tiller and soil tiller for working widths between 235 cm and 310 cm and a tilling depth up to 25 cm

Heavy-duty high-performance field tiller for tractors between 70 and 140 HP with Cat II three-point hitch.

The Victory HTLX field tillers comply with all applicable safety regulations and are tested according to the EU Machinery Directive "2006/42/EC" and the corresponding harmonized technical standards.

➤ For tractors with Cat. II three-point hitch
➤ For tractors from 70-140 HP
➤ Working widths from 235-310 cm
➤ Up to 25 cm working depth
➤ Double-walled housing 4 + 4 mm
➤ Scraper discs + support wheels optional

Free delivery ✓
Drive shaft with slip clutch included ✓
Gear oil included ✓

SPECIAL OFFER: SPECIAL PRICE in connection with your HTLX soil tiller: Scraper discs and support wheels for precise depth control only € 798,- !!

The Victory HTLX field tillers are available in the following working widths:

Victory HTLX-235 - heavy soil tiller up to 25 cm working depth with 235 cm working width
Victory HTLX-260 - heavy soil tiller up to 25 cm working depth with 260 cm working width
Victory HTLX-285 - heavy soil tiller up to 25 cm working depth with 285 cm working width
Victory HTLX-310 - heavy soil tiller up to 25 cm working depth with 310 cm working width

Application area of the HTLX field tiller

The Victory HTLX high-performance field tiller is a professional field tiller for the thorough cultivation of soil on medium and large fields, because with a working width of 235 to 310 cm and a working depth depending on soil conditions of up to 25 cm, the Victory HTLX field tiller is clearly superior to a conventional soil tiller from other suppliers.

With 540, 750 or 1000 rpm PTO speed, depending on the gear combination in the gearbox of the mounted tiller, eight different rotor shaft speeds between 175 and 324 rpm can be achieved. This allows your professional Victory HTLX field tiller to optimally adapt to soil conditions.

Technology of the HTLX field tiller

Unlike other field tillers offered on the market, we use up to 72 of the 1230 g heavy blades made of high-quality boron steel depending on the working width, which deliver an optimal result even when the mounted tiller has to work hard and heavy soils.

The power transmission is not done by chain as with a simple soil tiller, but via a heavy, maintenance-free oil bath gear drive, so that the heavy blade roller of the Victory field tiller runs with low vibration and the blades glide powerfully through the soil.

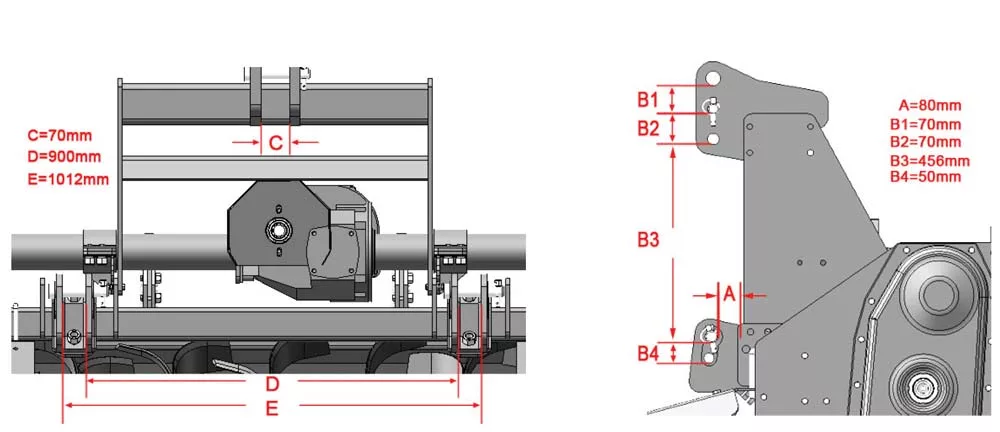

The universal three-point frame has adjustable and movable lower link connections for Cat II so that you can optimally position the soil tiller behind your tractor and cover the tractor track with the HTLX mounted tiller.

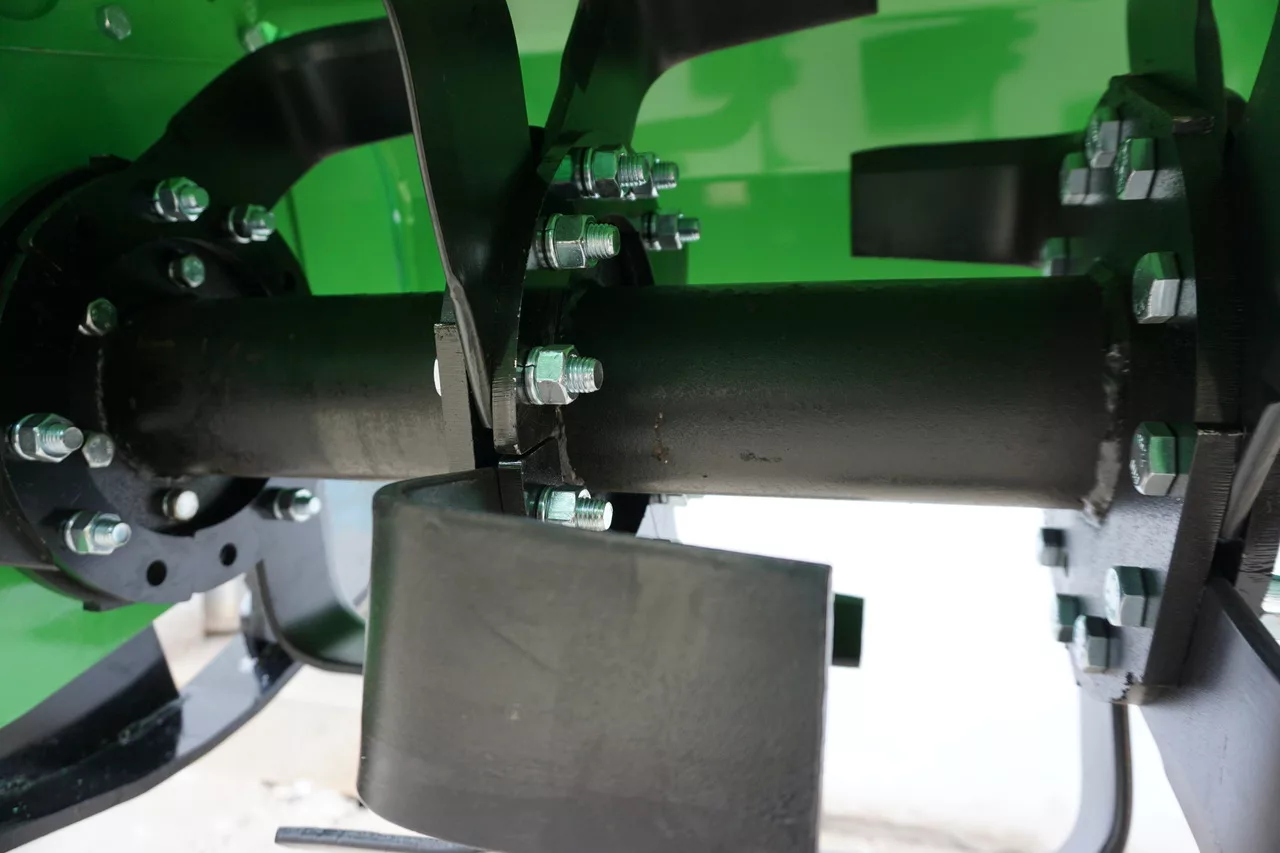

Inside the heavy, torsion-resistant double-walled housing made of 2 x 4 mm thick steel sheet is the laser-balanced shaft of the soil tiller, on which flanges with six hardened, individually replaceable L-shaped angle blades each are arranged, which loosen the soil evenly. Curved blades are available on request for the heavy HTLX field tiller.

The reinforced freewheel gearbox ensures that the heavy shaft can continue to run after switching off the PTO drive without transferring the movement to the tractor.

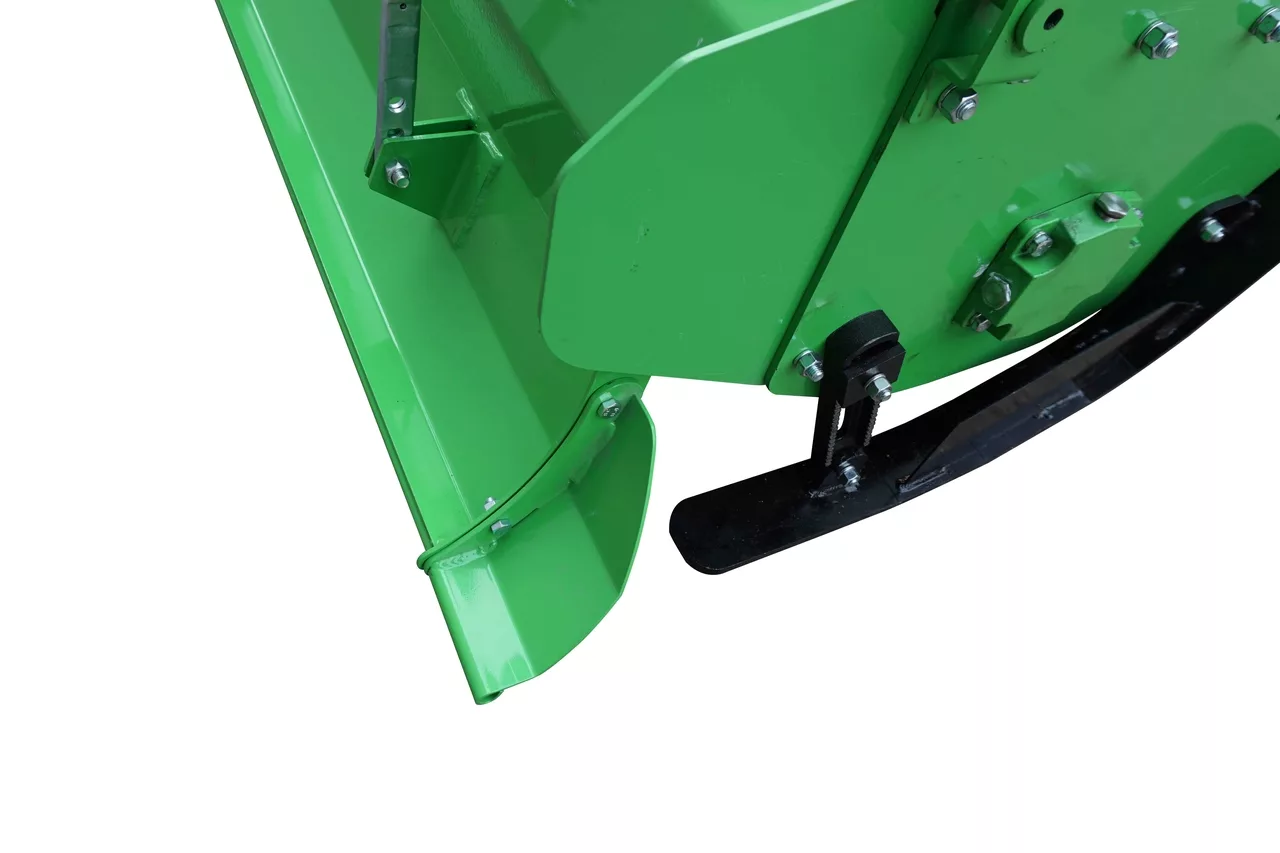

The heavy rear mudguard of the Victory HTLX field tiller is height-adjustable and equipped with spring spindles to achieve better soil leveling and also serves as a safety cover.

A massive T9 drive shaft with slip clutch is included in the delivery of the HTLX field tiller, so that tractor and field tiller are optimally protected.
The gear oil for angle and side gearboxes is also included in the delivery of the Victory field tiller.
The standard counter flange holds the L-shaped tiller blades even more reliably and prevents loosening of the blades even on very firm ground.
The heavy spring-supported rear plates reliably level the loosened soil by a double-sided extension beyond the normal working width, so that tracks - especially in combination with the optional front scraper discs - are hardly visible.

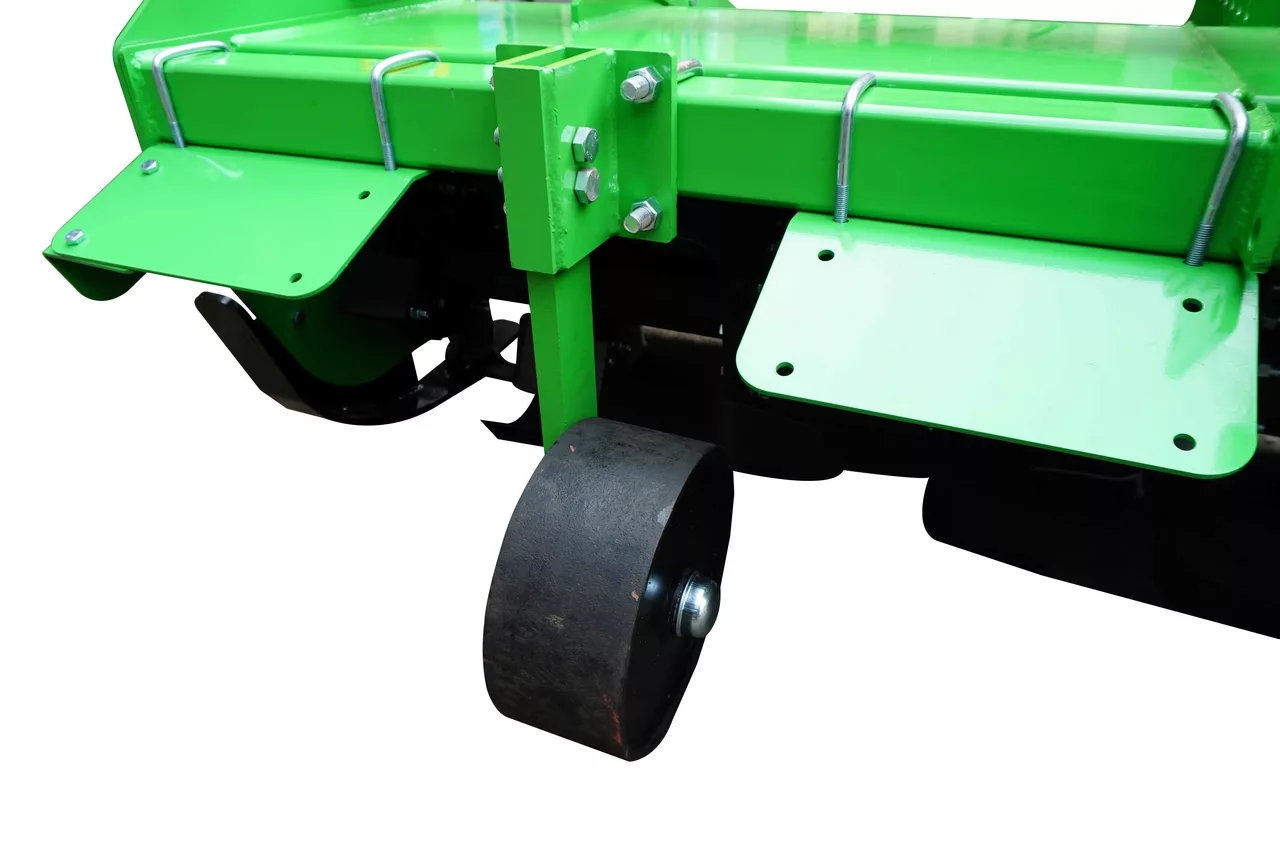

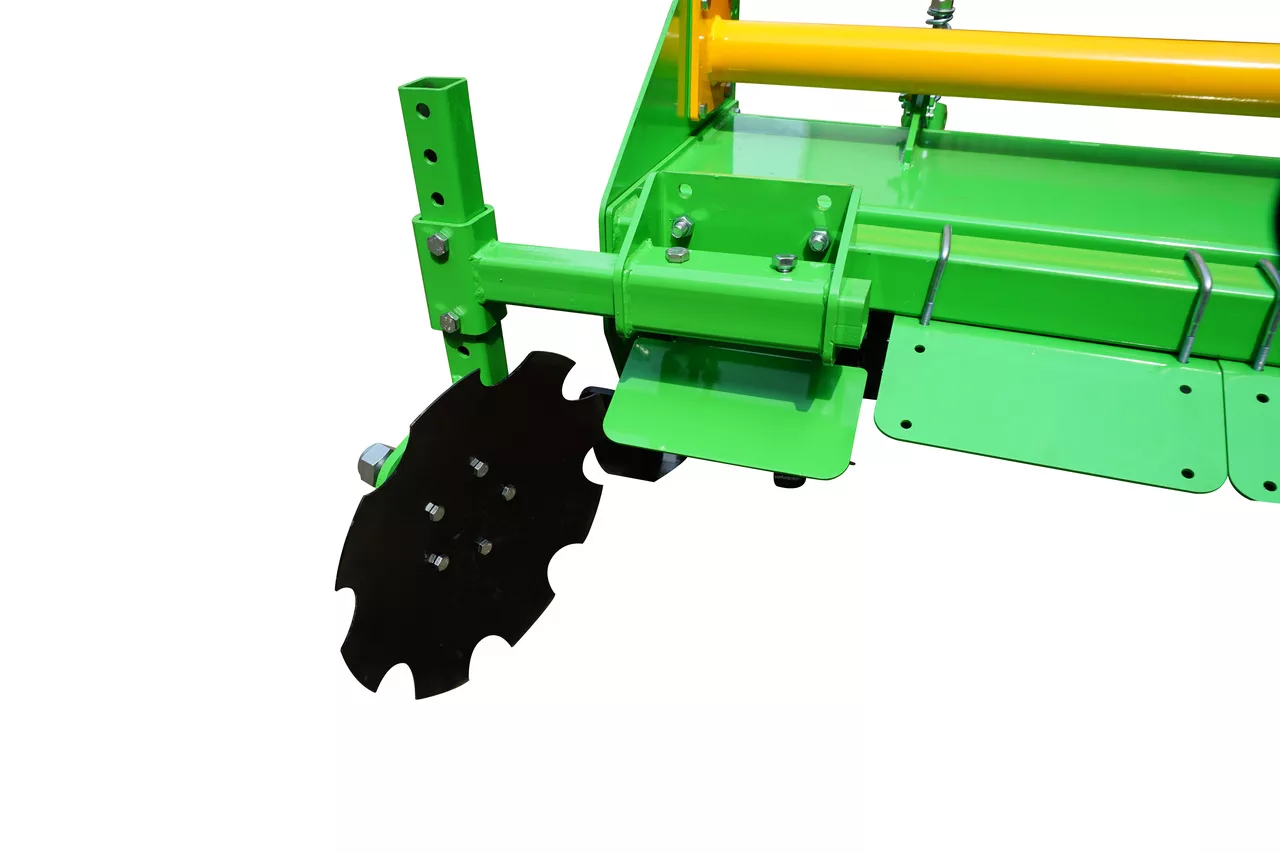

For the Victory HTLX soil tillers, front support wheels for optimal depth control and side scraper discs for improved leveling of the tracks are optionally available as a set.

✅ Variable rotor shaft speed

✅ Side gearbox with maintenance-free oil bath gear drive

✅ Freewheel gearbox protects tractor after drive shaft is switched off

✅ Easy positioning of the field tiller through adjustable Cat-2 lower link mounts

✅ Safety rear flap
✅ Torsion-resistant, double-walled housing 4 + 4mm

✅ Safety covers at the front of the HTLX field tiller

✅ Heavy T9 drive shaft with adjustable slip clutch included in delivery

✅ Gear oil included in delivery

✅ Comprehensive German operating manual

✅ Spare parts supply directly via our online shop with exploded view and detailed parts list

We at Victory Tractor are confident that you will not find any other soil tiller with a better price-performance ratio. Please compare our product in detail with other offered tillers, because we are confident that you will agree with us.

ATTENTION

Partially assembled machines delivered do NOT contain ANY operating fluids such as engine and/or gear oil for transport logistics reasons. Lubrication points also contain NO lubricants! Please pay attention to the corresponding instructions in the German operating manual BEFORE commissioning.

TECHNICAL DATA ►

Technical Data Victory HTLX soil tiller
DATA	HTLX-235	HTLX-260	HTLX-285	HTLX-310
Dimensions (LxWxH) mm	2480x1080x1290	2750x1080x1290	2980x1080x1290	3230x1080x1290
Total weight incl. drive shaft kg	859	901	959	1014
Working width cm	235	260	285	310
max. working depth (depending on soil conditions) mm	250
3-point hitch tractor	Cat 2
PTO shaft clockwise rpm	540 / 750 / 1000 1 3/8" 6T
Length of drive shaft mm	900
PTO safety	adjustable slip clutch
Drive	Bevel gearbox + side gearbox
Recommended tractor engine power HP / kW	70-130 / 52-95	75-130 / 55-95	85-130 / 63-95	100-140 / 74-103
Bevel gearbox (gear options)	a: 21 / 19 or b: 19 / 21
Rotor rpm at 540/750/1000 rpm PTO	a: 175 / 243 / 324
Rotor rpm at 540/750 rpm PTO	b: 214 / 297
Material thickness cover soil tiller mm	4 + 4
Material thickness side walls mm	8
Coating	Powder coating; green / yellow
Number of blades per flange	6
Number of blades (individually replaceable)	54	60	66	72
Rotor shaft diameter / wall thickness mm	102 / 14
Weight of tiller blade g	1230
Transport box (LxWxH) cm	270x107x100	295x107x100	310x107x100	335x107x100
