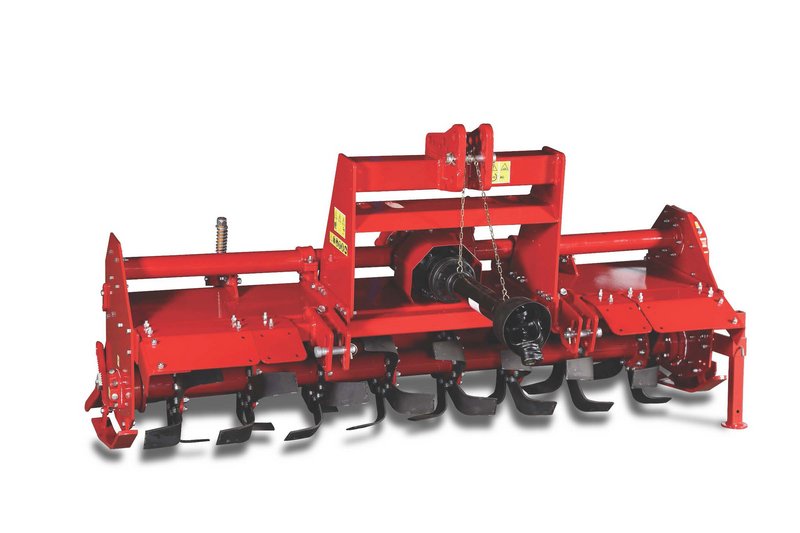

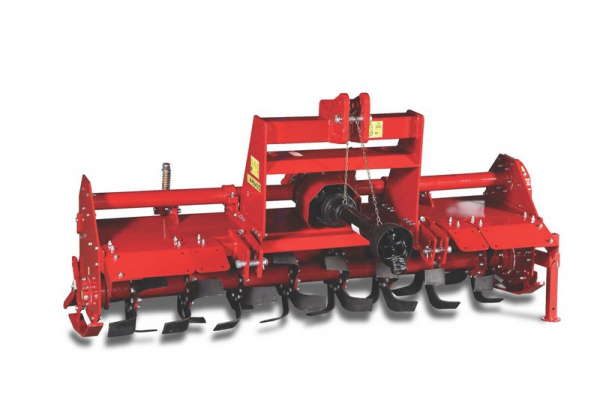

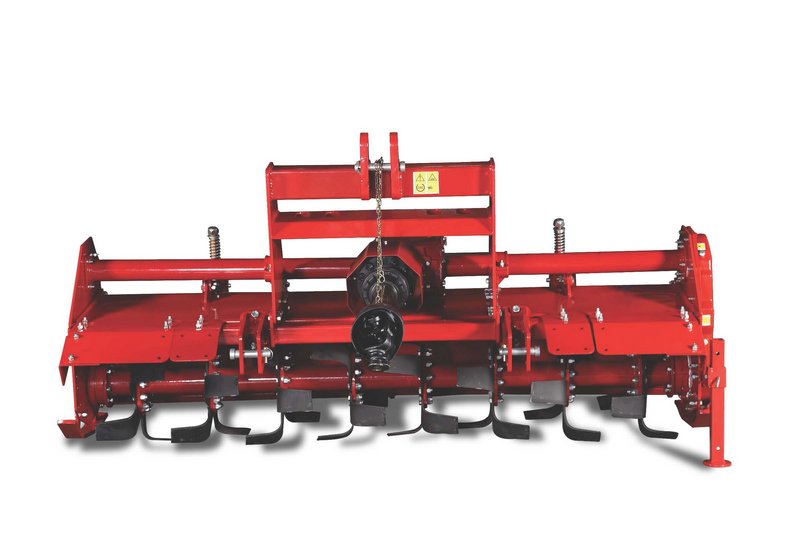

Professional Tiller cultivator for large tractors with 30hp to 80hp with CAT II 3-point hitch.
Victory HTLU tillers are available with the following working width:
Victory HTLU-185 - heavy tiller up to 22cm working depth with 185cm working width. Item price: 2.458,- €
Victory HTLU-210 - heavy tiller up to 22cm working depth with 210cm working width. Item price: 2.698,- €
Victory HTLU-235 - heavy tiller up to 22cm working depth with 235cm working width. Item price: 2.898,- €
Application
The Victory HTLU tiller is a highly professional machine for thorough tilling any kind of soil on medium and large size land. The working width of 135cm to 235cm and the adjustable working depth of up to 22cm makes the Victory HTLU tiller superior to standard tillers in the medium level price segment.
With 540 or 750 RPM PTO shaft speed you can choose seven different rotor shaft speed levels from 158 to 315 RPM for your tiller, depending on the gear setting you choose. The Victory HTLU tiller can be perfectly adjusted to your demands and soil condition. In contrast to other tiller offered in the market, we use between 30 and 54 specially hardened blades, each with a weight of 1075gr.
Technology
Unlike other tillers using a chain transmission, the Victory HTLU tiller is using heavy maintenance-free oil bath gear transmissions, letting the laser balanced blade shaft run smoothly through even heavy and hard soil. The universal 3-point hitch on the tiller comes with adjustable lower hitch connectors for your Cat II Tractor.

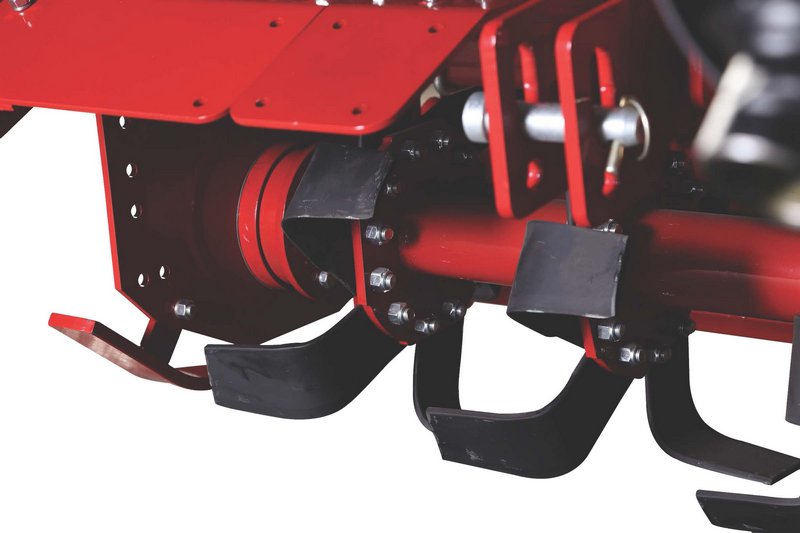

Underneath the massive up to 8mm strong steel housing sits the laser balanced rotor shaft of the tiller,. Each flange on the rotor shaft of the tiller is equipped with 6 specially designed L-shaped blades. The blades are made of hardened boron steel and can be individually exchanged and regrinded.
The reinforced free-wheel transmission lets the rotor shaft of the tiller turn, once the PTO is switched off, so that its movement will not be transferred to the tractor. The PTO shaft supplied with the tiller has a friction clutch to perfectly protect tractor and tiller and will also help to adjust to different soil conditions.

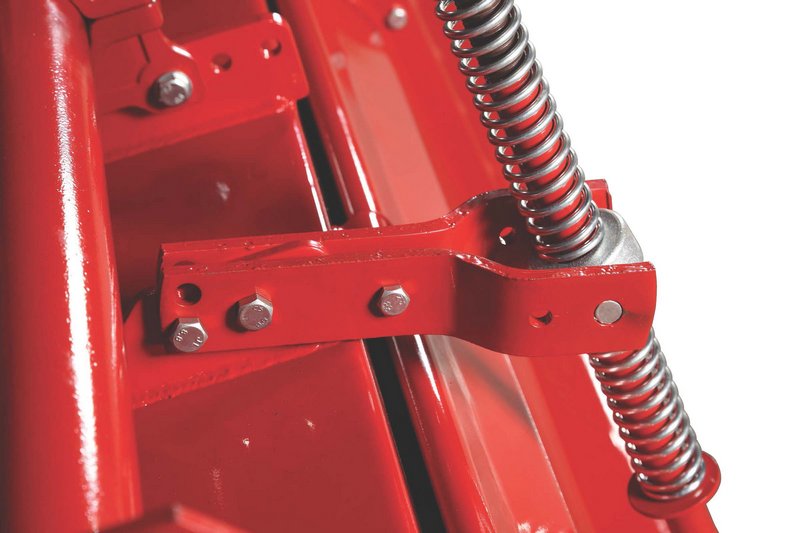

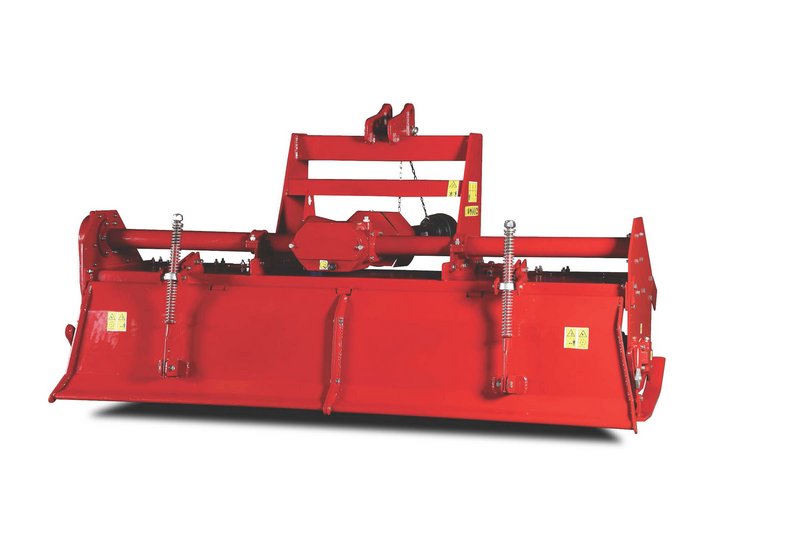

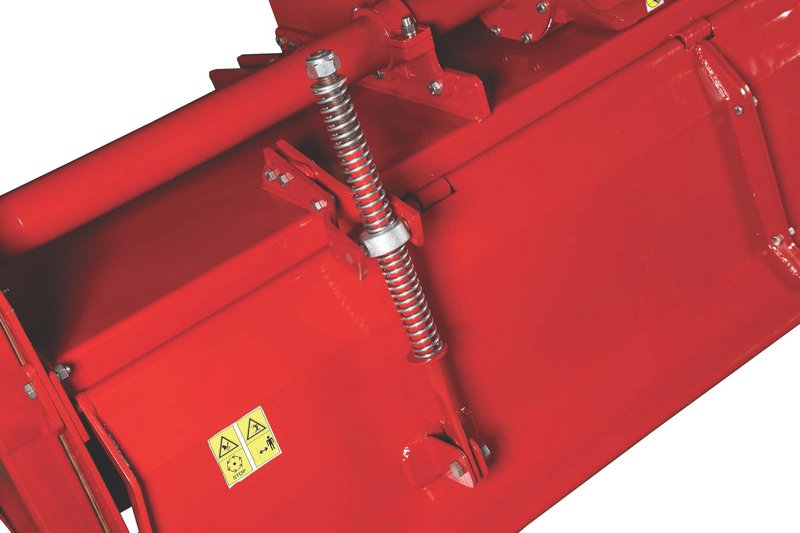

Strong springs are mounted on the height adjustable rear cover of the HTLU tiller, to provide a smooth finish and comply with latest CE safety specifications.
The completely assembled tiller is delivered in the massive Victory crates. Just the 3-point hitch and the PTO shaft protector have to be assembled to the tiller, taking you less than 20min. We offer a multilingual user manual and assembly guide with photos to assist you.



- variable rotor shaft speed

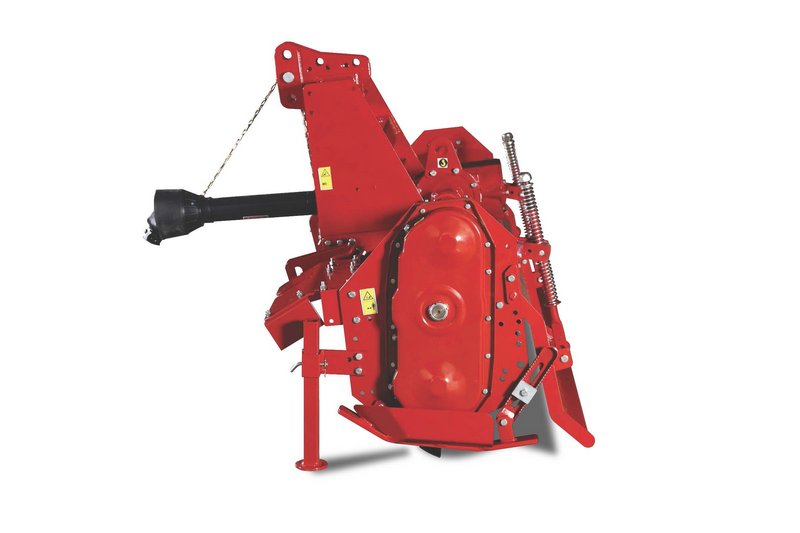

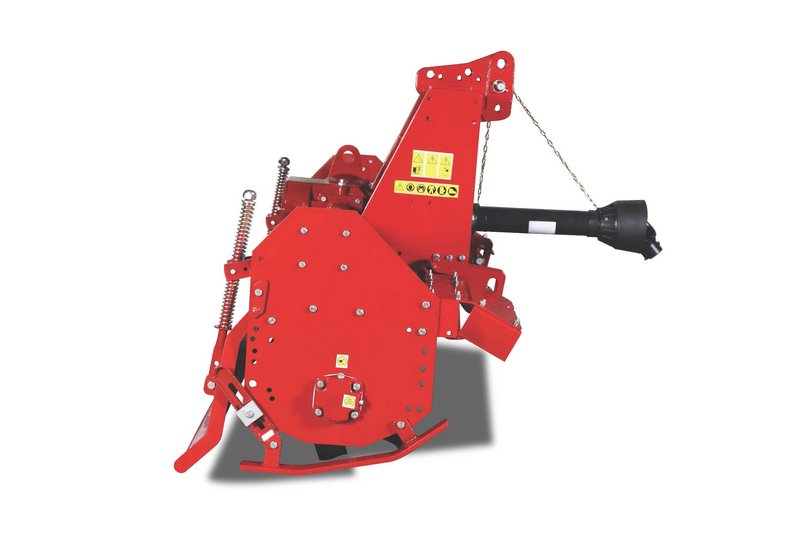

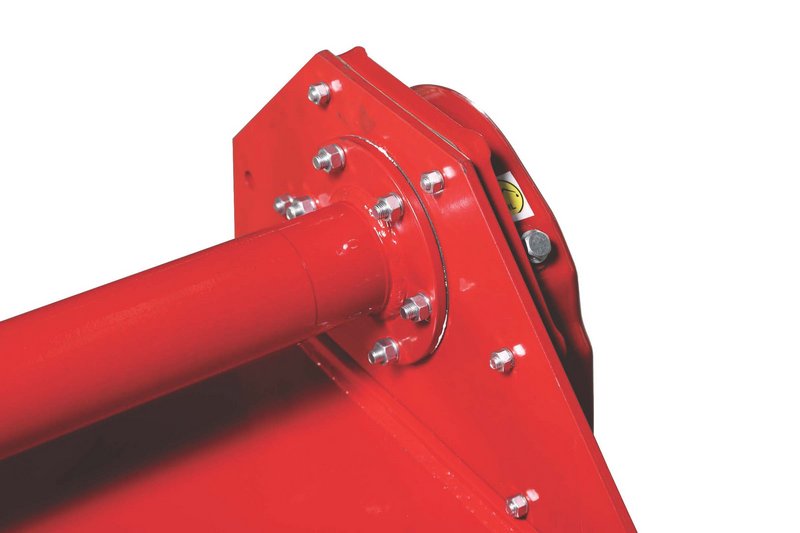

- side gear box with oil bath gear transmission
- free wheel transmission protects tractor after PTO shaft is turned off

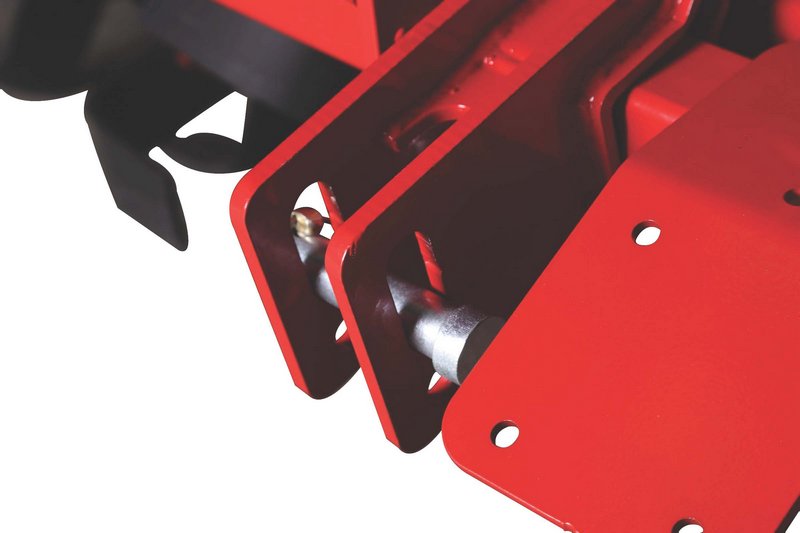

- easy positioning of the tiller by adjustable Cat II lower hitch connections
- rear spring controlled safety cover
- Safety front covers for HTLU tiller
- heavy PTO shaft with friction clutch included in the shipment
- gear oil included
- detailed multi lingual user manual
- spare parts and detailed drawings available in our online shop
The Victory HTLU tillers comply with all safety regulations and are CE tested following the 2006/42/EC machine directive and the respective harmonized standards.
We from Victory Tractor firmly believe that you will not find a better value for money heavy tiller in the market, please feel free to compare our product to the others in the market and we are sure you will agree.
ATTENTION
Partially assembled machines do not contain any fuel , oil or other fluids or grease needed for operation ! BEFORE USING THE MACHINE please carefully read the English user manual.

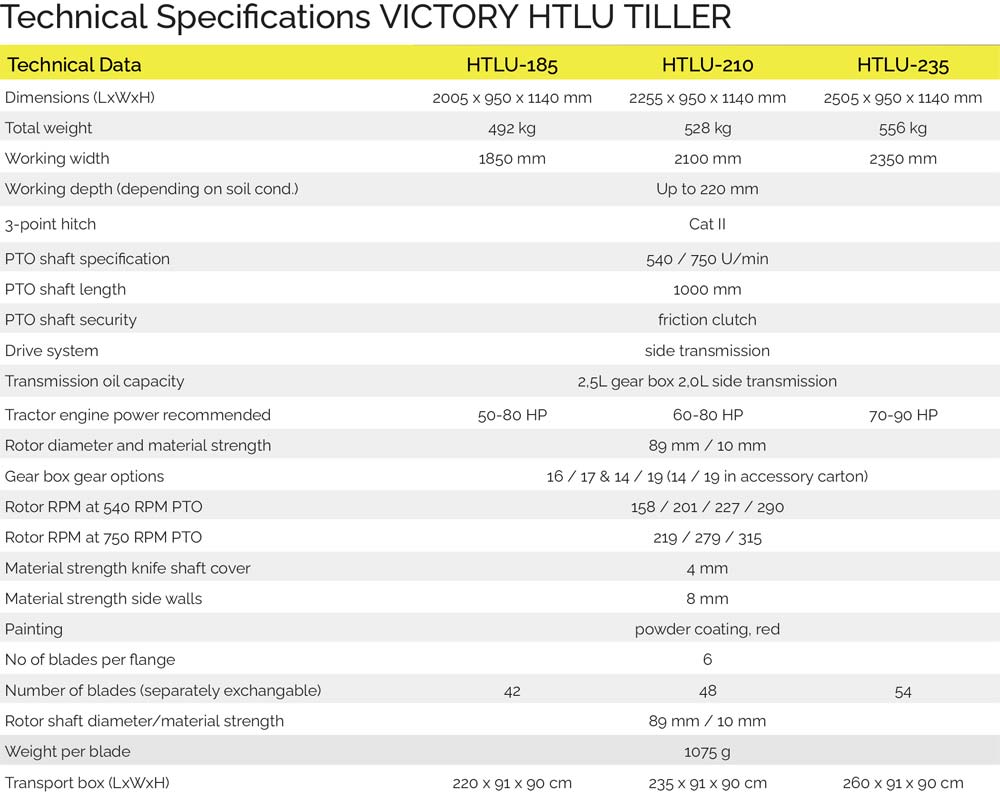

Technical Data |
HTLU-185 |
HTLU-210 |
HTLU-235 |

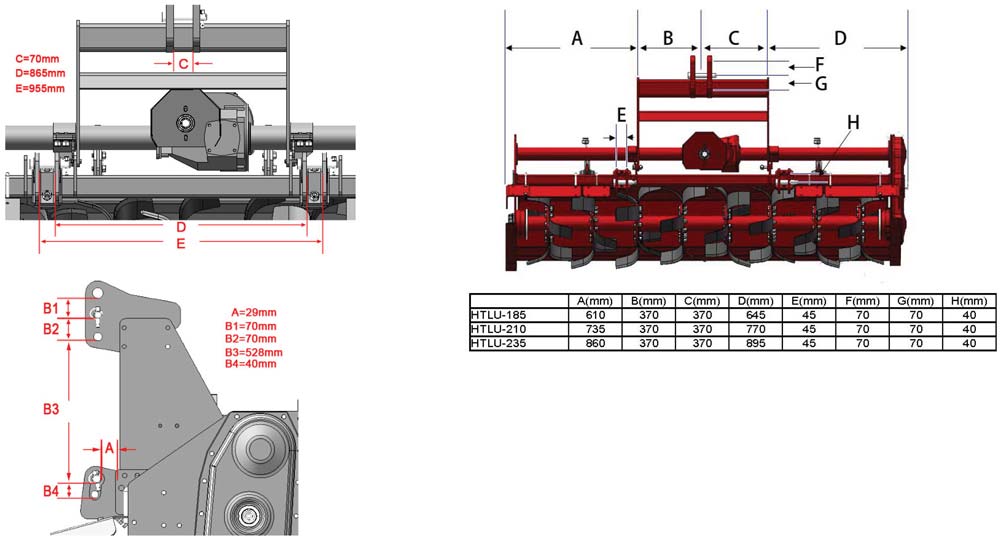

Dimensions (LxWxH) |
2005x950x1140mm |
2255x950x1140mm |
2505x950x1140mm |
total weight |
492kg |
528kg |
556kg |
working width |
1850mm |
2100mm |
2350mm |
working depth (depending on soil cond.) |
up to 220mm |
|
|
3-point hitch |
Kat II |
PTO shaft specification |
540 / 750 U/min |
PTO shaft length |
1000mm |
PTO shaft security |
friction clutch |
drive system |
side transmission |
transmission oil capacity |
2,5L gear box 2,0L side transmission |
Tractor engine power recommended |
50-80hp |
60-80hp |
70-80hp |
|
|
rotor diameter and material strength |
89mm / 10mm |
gear box gear options |
16/17 & 14/19 (14/19 in accessory carton) |
rotor RPM at 540 RPM PTO |
158/201/227/290 |
rotor RPM at 750 RPM PTO |
219/279/315 |
material strength knife shaft cover |
4mm |
material strength side walls |
8mm |
painting |
powder coating, red |
|
|
no of blades per flange |
6 |
6 |
6 |
number of blades (separately exchangable) |
42 |
48 |
54 |
rotor shaft diameter/material strength |
89mm / 10mm |
weight per blade |
1075gr |
|
|
Transport box (LxWxH) |
220x91x90cm |
235x91x90cm |
260x91x90cm |
|
|
