Victory HTLG-100 - heavy tiller up to 18cm working depth with 98cm working width. Item price: 998,- €
Victory HTLG-120 - heavy tiller up to 18cm working depth with 118cm working width. Item price: 1.098,- €
Victory HTLG-140 - heavy tiller up to 18cm working depth with 141cm working width. Item price: 1.178,- €
Application:
Victory HTLG tillers are perfect machines for thorough tilling any kind of soil on small and medium size land. Their working width of 75cm to 140cm and the adjustable working depth of up to 18cm makes Victory HTLG tillers superior to standard tillers in the entry level price segment.
In contrast to other machines offered in the market, we use between 18 and 36 specially hardened blades, each with a weight of 610gr.
Unlike other tillers using a chain or belt for transmission, Victory HTLG tillers are using heavy maintenance-free oil bath gear transmissions, letting the laser balanced blade shaft run smoothly through even heavy and hard soil.
Technology:
Underneath the massive up to 6mm strong steel housing sits the laser balanced shaft with flanges in 25cm distance, each equipped with 6 specially designed L-shaped blades. The blades are made of hardened Boron steel and can be individually exchanged and regrinded. The lower hitch Cat I connectors of the tiller can be adjusted to perfectly position your HTLG tiller behind your tractor and according to its track width.
The reinforced free-wheel transmission lets the blade shaft turn, once the PTO is switched off, so that its movement will not be transferred to the tractor. The PTO shaft supplied with the tiller has a friction clutch for a perfect protection.
The height adjustable rear cover of the HTLG tiller provides a smooth finish and is also an important safety feature,
The completely assembled tiller is delivered in a massive Victory wooden crates. Just the 3-point hitch and the PTO shaft protector have to be assembled, taking you less than 20min. We offer a multilingual user manual and assembly guide with photos to assist you.



-
side transmission with oil bath gear
-
free-wheel transmission protects your tractor after PTO is switched off
-
easy positioning of the tiller behind your tractor by our adjustable Cat I lower hitches
-
rear safety cover ; spring controlled
-
front safety covers for HTLG tiller
-
PTO shaft with friction clutch included in the shipment
-
gear oil included in the shipment
-
detailed multi-lingual user manual
-
spare part service and detailed drawings available in our online shop
The Victory HTLG tiller comply with all safety regulations and are CE tested following the 2006/42/EC machine directive and the respective harmonized standards.
We from Victory Tractor firmly believe that you will not find a better value for money heavy tiller in the market, please feel free to compare our product to the others in the market and we are sure you will agree.
ATTENTION
Partially assembled machines do not contain any fuel , oil or other fluids or grease needed for operation ! BEFORE USING THE MACHINE please carefully read the English user manual.

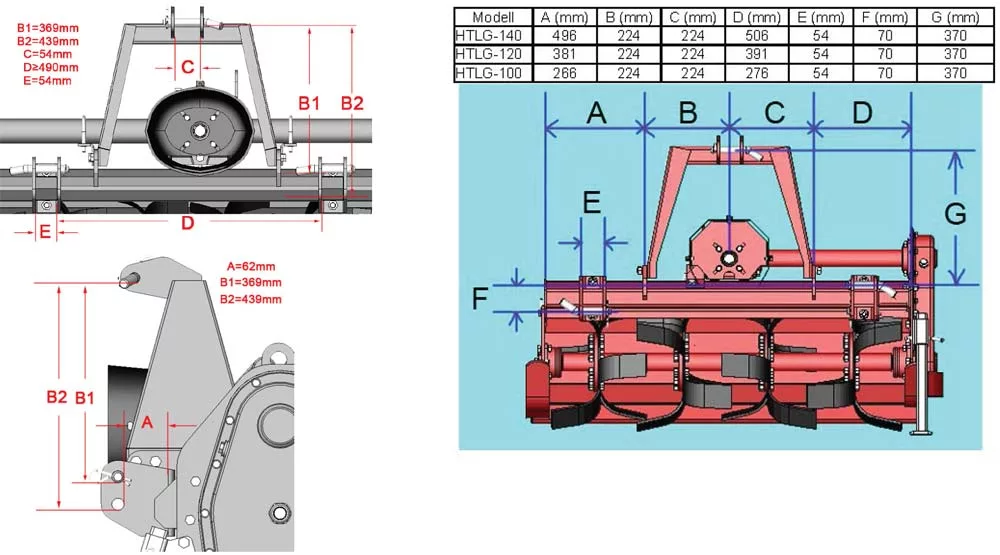

Technical Data |
HTLG-100 |
HTLG-120 |
HTLG-140 |
Dimensions (LxWxH) |
1240x540x540mm |
1440x540x540mm |
1640x540x540mm |
total weight |
156kg |
172kg |
190kg |
working width |
980mm |
1180mm |
1410mm |
working depth (depending on soil cond.) |
120 to 180mm |
|
|
3-point hitch |
Kat I |
PTO shaft specification |
540 RPM |
PTO shaft length |
7500mm |
PTO shaft security |
friction clutch |
drive system |
side transmission |
transmission oil capacity |
1,5L gear box 2,0L side transmission |
Tractor engine power recommended |
20-30hp |
20-35hp |
30-45hp |
|
|
rotor RPM at 540 RPM PTO |
270 |
material strength knife shaft cover |
4mm |
material strength side walls |
6mm |
painting |
powder coating, red |
|
|
no of blades per flange |
6 |
6 |
6 |
number of blades (separately exchangable) |
24 |
30 |
36 |
rotor shaft diameter/material strength |
50mm / 5mm |
weight per blade |
610gr |
|
|
Transport box (LxWxH) |
130x60x60cm |
150x60x60cm |
170x60x60cm |
Transport box (KG) |
182kg |
200kg |
222kg |
|
|
