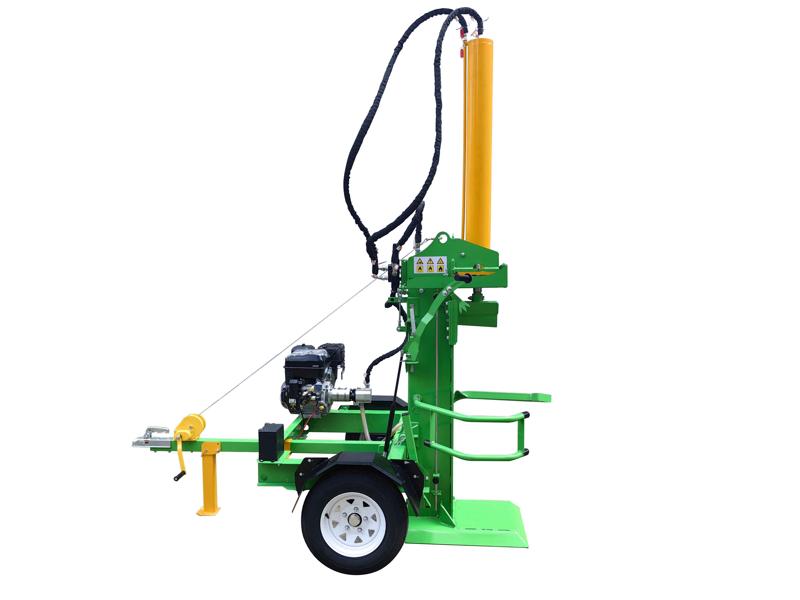

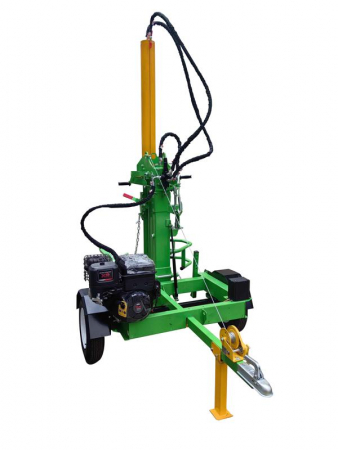

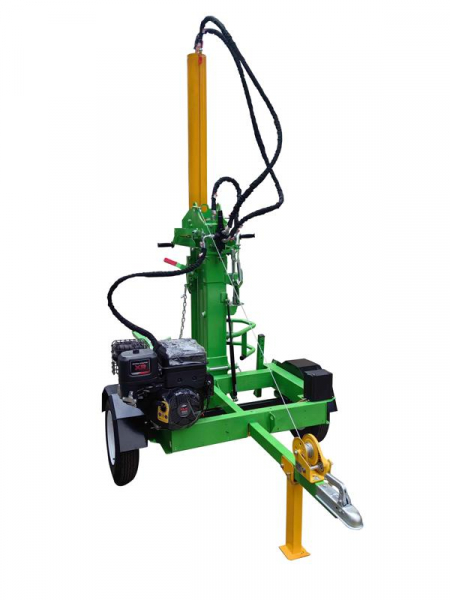

LS-42T serie log splitter with Briggs&Stratton engine and 32t split force
Heavy duty log splitter with 15hp Briggs&Stratton engine and 1050 splitting length for permanent use for professional and fast wood processing; trailer mounted log splitter for easy operation in any terrains
24-months factory warranty
Service Shops
Application:
The professional Victory fuel engine log splitters with up to 32to of split force, are mounted on a trailer chassis. The large wheeled trailer chassis allows operation even in difficult terrain and can be pulled by UTV, quad or SUV by standard trailer hitch anywhere you need a log splitter.
the 2021 modell of our top level log splitter LS-42T was further improved:
- ✅ hydraulic cylinder can be lowered for transport to dramatically reduce trailer length
- ✅ new devices for better log handling before, during and after log splitting
- ✅ log splitter is delivered fully assembled
- ✅ gauge for the hydraulic tank
- ✅ combined hydraulic tank and base frame
- ✅ new split knife with integrated rollers for smother log splitting
- ✅ strong pneumatic springs to easily bring the log splitter in vertical position
- ✅ winch to lower the vertical log splitter into horizontal position
- ✅ adjustable lift limiter (no tools needed) to save time when splitting shorter logs
- ✅ hydraulic log lifter to lift and position heavy logs underneath the slitting knife
- ✅ automatic lifting of the split knife to the upper lift-limiter once the log was split
- ✅ massive engine and hydraulic protection plate
- ✅ riffle sheet bottom to prevent log slipping
- ✅ additional 24 months Briggs&Stratton factory warranty
Technology:
The Victory LS-42T log splitter comes as a professional version with 1050mm split length. The extremely powerful 4-stroke Briggs&Stratton 15hp fuel engine allows operation anytime and anywhere throughout the year. No tractor with PTO shaft needed no electricity supply needed.
Since the LS-42T is well balanced, the firewood splitter can be easily brought from the horizontal transport position into the vertical working position and back.
The double-acting hydraulic cylinder offers full split force in any position, so even logs with many knotholes can be easily handled. The long split knife allows easy operation of very thick logs aswell. To calculate the real force of a hydraulic cylinder is easy, once you know the pump pressure, the inner diameter of the cylinder tube and the diameter of the cylinder rod. Not all our competitors are calculating that "correctly". Please compare the technical data below in detail to know the true performance.
The Victory LS-42T log splitter is operated with a two-hand-safety operation to make sure, that your hands are always outside the danger area. Releasing only one control lever, the split knife will stop at once. However the split knife does reset itself automatically, giving you time to position the next log, while the knife is moving up the log splitter on its own.
Features
- CE-certificate following latest specifications
- express parts supply through our online shop
- log splitter with vertical operation
- can be used anywhere because of fuel engine
- safety two-hand-operation mode
- hydraulic safety pipes
- standard trailer hitch
- enhanced mobility through trailer mount design
- reinforced base plate (300 x 60 x 500 mm) with 45° angle
- two safety side brackets
Victory log splitters comply with all valid safety regulations and are CE-tested according the 2006/42/EC machine directive.
We from Victory Tractor firmly believe that you will not find a better value for money heavy duty log splitter in the market. Feel free to compare our product to others in the market and we are sure you will agree.
ATTENTION
Partially assembled machines do not contain any fuel , oil or other fluids or grease needed for operation ! BEFORE USING THE MACHINE please carefully read the English user manual.
Technical Data |
LS-42T-1050 |
Dimension vertical operation (HxWxD) |
290x118x235cm |
Dimension transport mode (LxWxH) |
235x118x150cm |
Tire size / diameter |
4.8" x 8" / 40cm |
Total weight |
405kg (dry) |
|
|
Engine |
4 stroke, 420ccm, 15hp, unleaded E10 |
Engine oil (not included) |
approx. 1,1 L (10W30 / 10W40) |
Starter |
pull starter |
gas tank |
max. 6,5L |
fuel consumption |
max. 3,3L/h full load |
Hydraulic pressure |
250bar |
Hydraulic cylinder diameter |
140mm outside / 130mm inside |
cylinder rod diameter |
60mm |
Hydraulic oil volume (not included) |
ca. 40L HLP 32/46 (tank 26L, cylinder 13L) |
max. pressure / safety valve |
3500psi / 3000psi |
max. split force |
approx. 32 t |
calculated force (according to formular) |
33,16 t / 26,10 t down / up |
|
|
working mode |
vertical |
length of split knife |
215mm, 3° tilted |
downward knife speed |
12cm/sec |
upward knife speed |
14cm/sec |
splitting speed |
ca. 10sec |
reset speed (automatic) |
ca. 8sec |
max. log length |
1050mm |
split length |
1050mm |
max. log width |
500mm |
|
|
trailer towing speed |
25km/h (not street legal) |
paiting |
powder coating |
shipping box (LxWxH) |
230x118x120cm |
|
|
