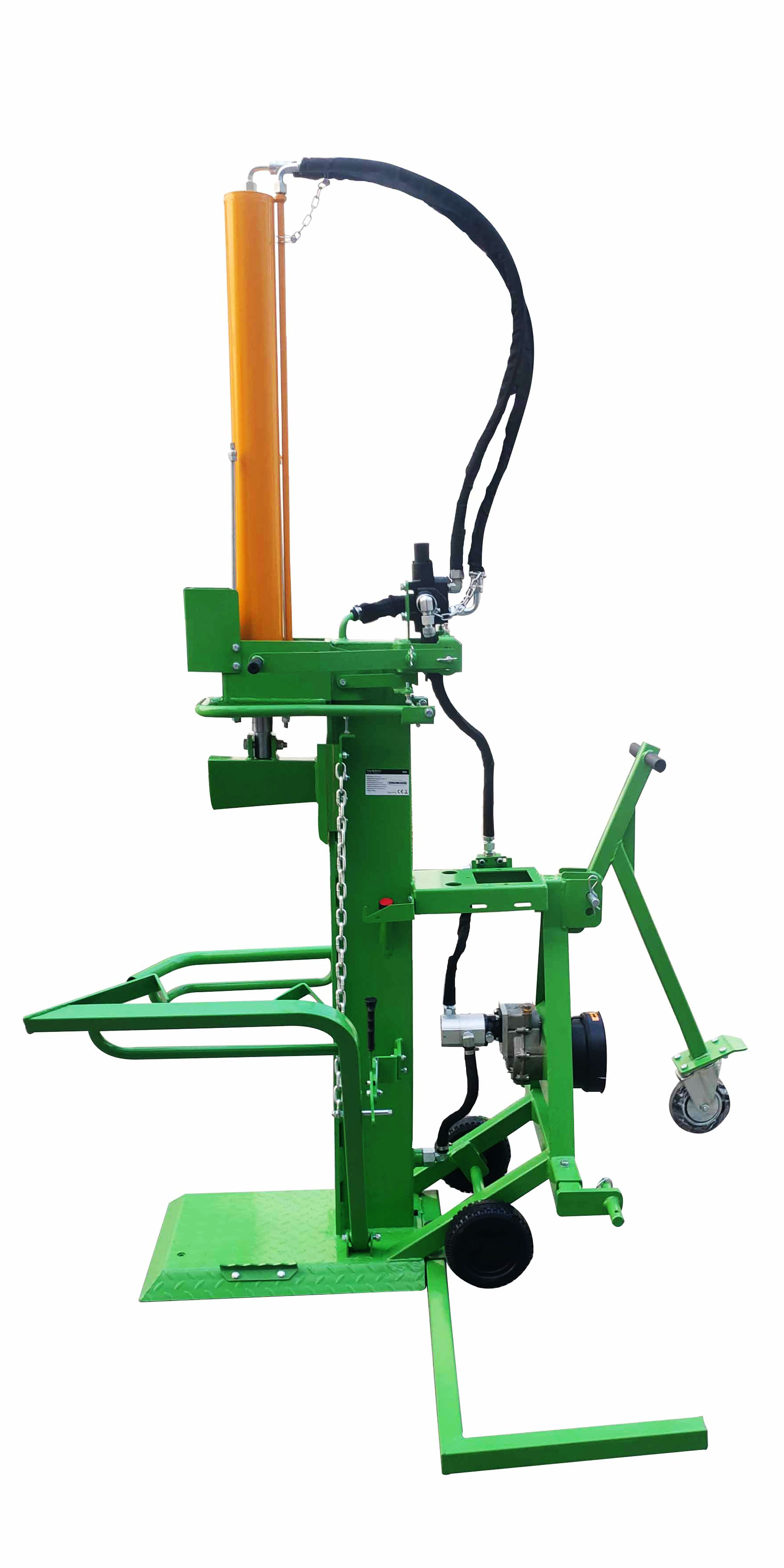

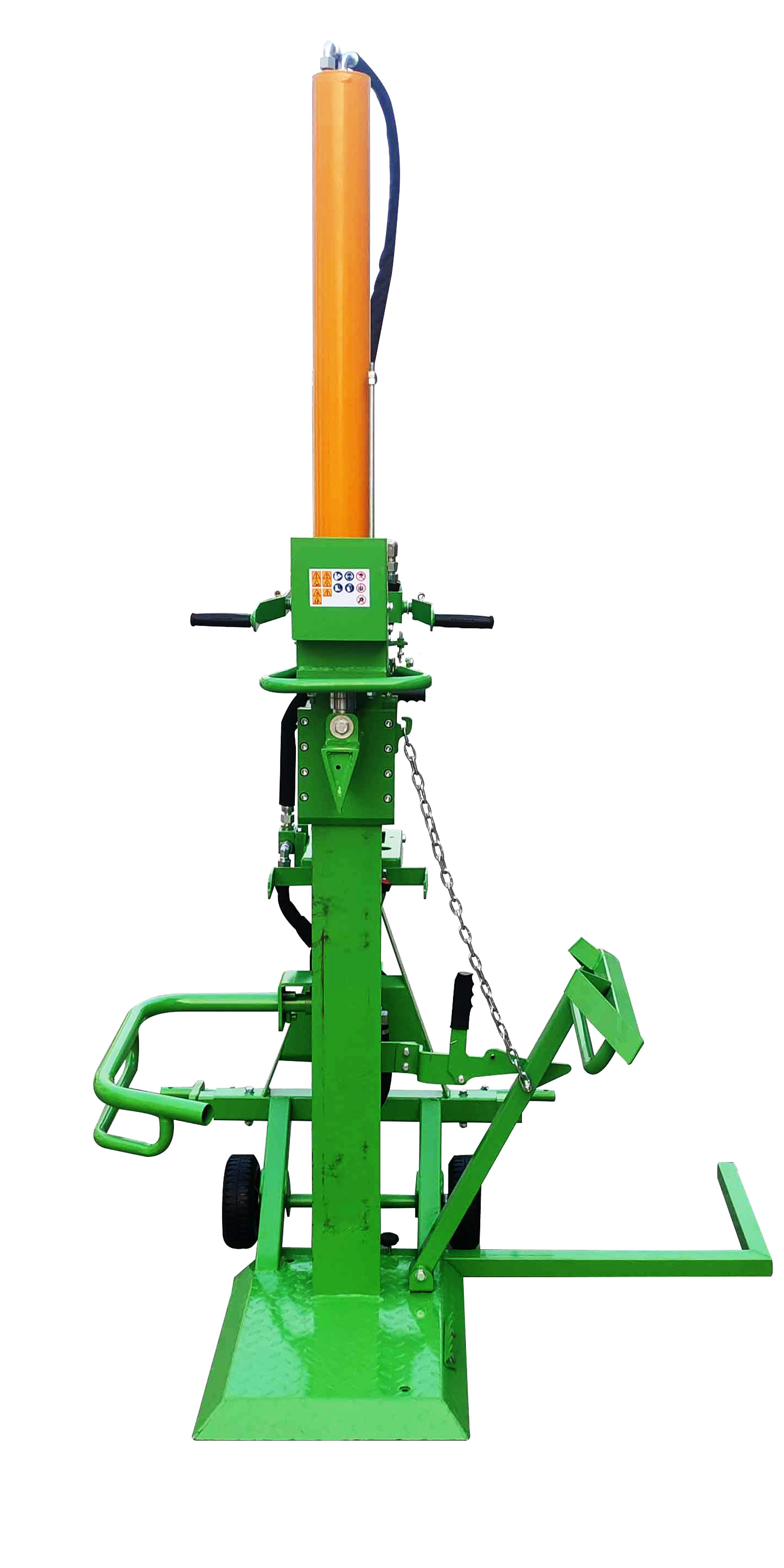

Victory LS-26TP Hydraulic Log Splitter for PTO shaft

The professional Victory Logsplitters with up to 26 tons of split force are equipped with a 3-point hitch for tractors. The PTO shaft to connect the log splitter to the tractor is included in the accessory. For easy moving the 280kg machine also without a tractor, the LS-26TP comes with chassis with large wheels. Since the  LS-26TP log splitter is well balanced, its easy to move arround the machine with the chassis. For easy storage the hydraulic cylinder can be lowered.


The 2024 modell of the LS-26TP log splitter was further improved:

Technology of the log splitter:

The professional hydraulic cylinder of the Victory LS-26TP log splitter offers the full splitting force all the way down the 950mm split path. Even big diameters of hard wood can be smoothly splitted. The log splitter is driven by a tractor through the PTO shaft included in the shipment. The tractor needs 540 rpm PTO speed. The maximum available hydraulic pressure for the log splitter is 300 bar or 3000 MPa. Logs between 80 and 500mm in diameter and 1000mm length can be processed.

Since the LS-26TP is well balanced, the firewood splitter can be easily moved arround without a tractor by the additional transport rack and large wheels.
The double-acting hydraulic cylinder offers full split force in any position, so even logs with many knotholes can be easily handled. The long split knife allows easy operation of very thick logs aswell.

The Victory LS-26TP log splitter is operated with a two-hand-safety operation to make sure, that your hands are always outside the danger area. Releasing only one control lever, the split knife will stop at once. However the split knife does reset itself automatically, giving you time to position the next log, while the knife is moving up the log splitter on its own.

Product features

• CE-certificate following latest specifications
• express parts supply through our online shop
• log splitter with vertical operation
• safety two-hand-operation mode
• hydraulic safety pipes
• hydraulic cylinder can be lowered for easy storage
• tractor connection through PTO shaft drive
• reinforced base plate (300 x 60 x 400 mm) with 45° angle
• two safety side brackets
