LS-26T Series - Hydraulic Log Splitter with up to 26t Splitting Force

Heavy-duty log splitter for 1000mm long logs and 960 mm splitting length for professional and fast wood processing.

The Victory LS-26T log splitters comply with all applicable safety regulations and are CE certified according to the "2006/42/EC Machinery" directive.


➤ With PTO shaft
➤ With 400V electric motor
➤ Lowerable cylinder

free delivery ✓
including PTO shaft ✓

Application area of the hydraulic log splitter LS-26TEP:

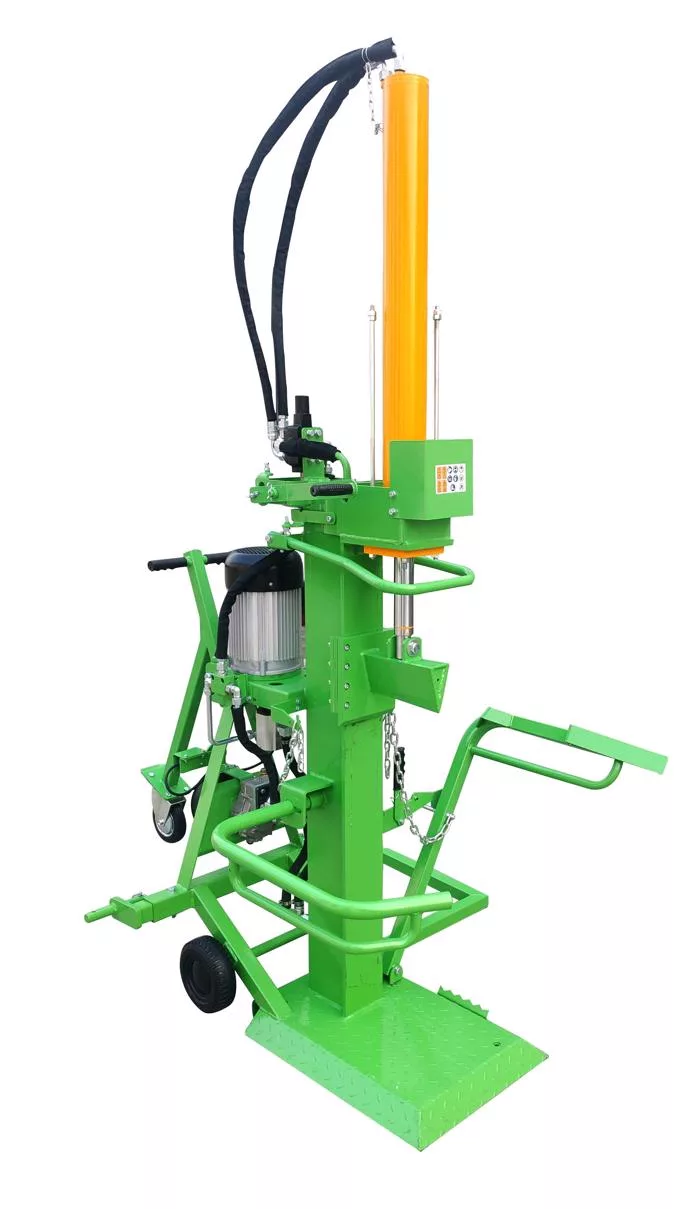

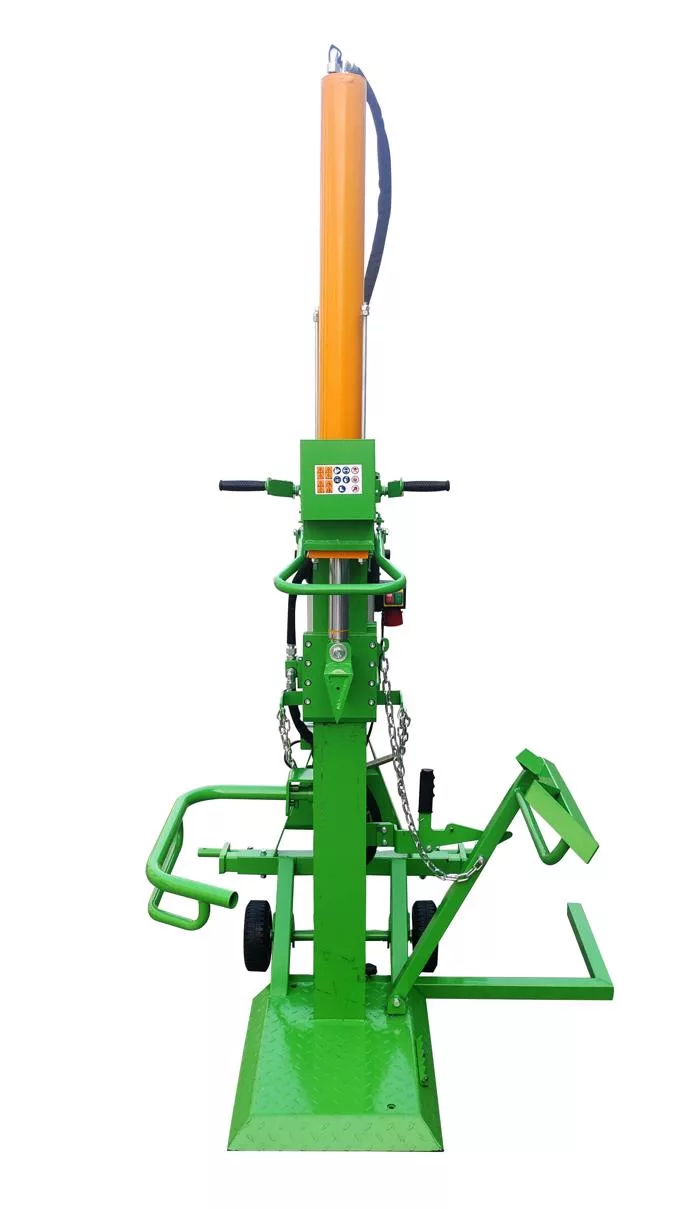

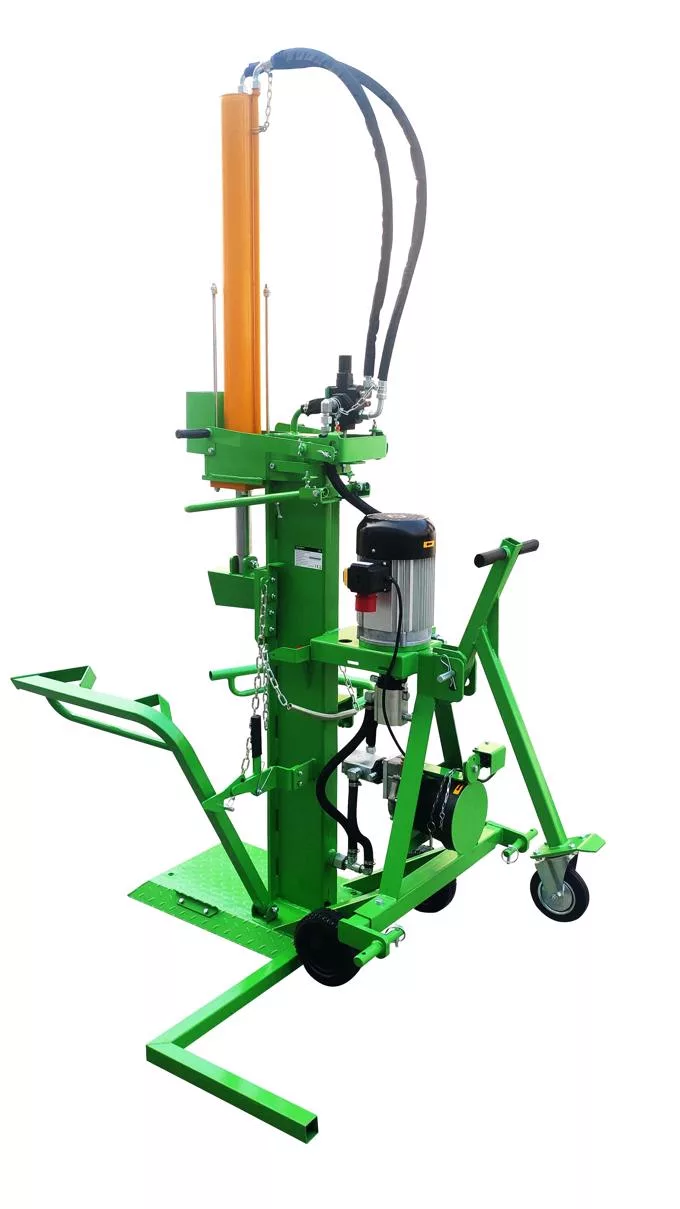

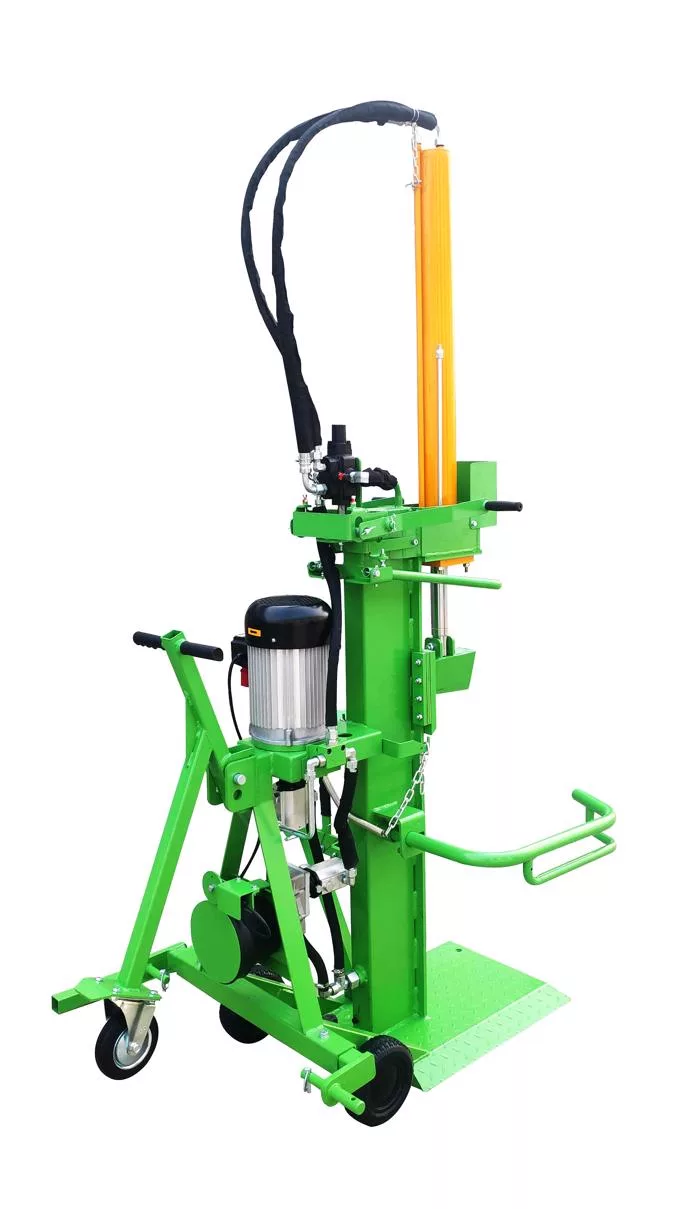

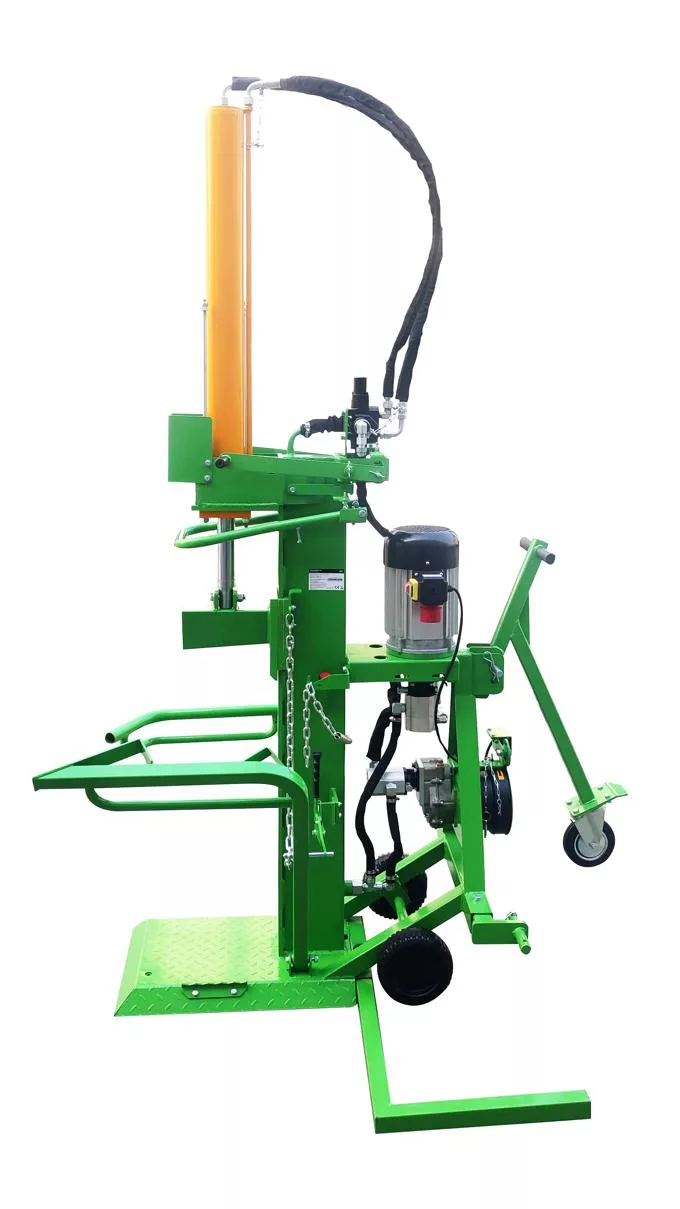

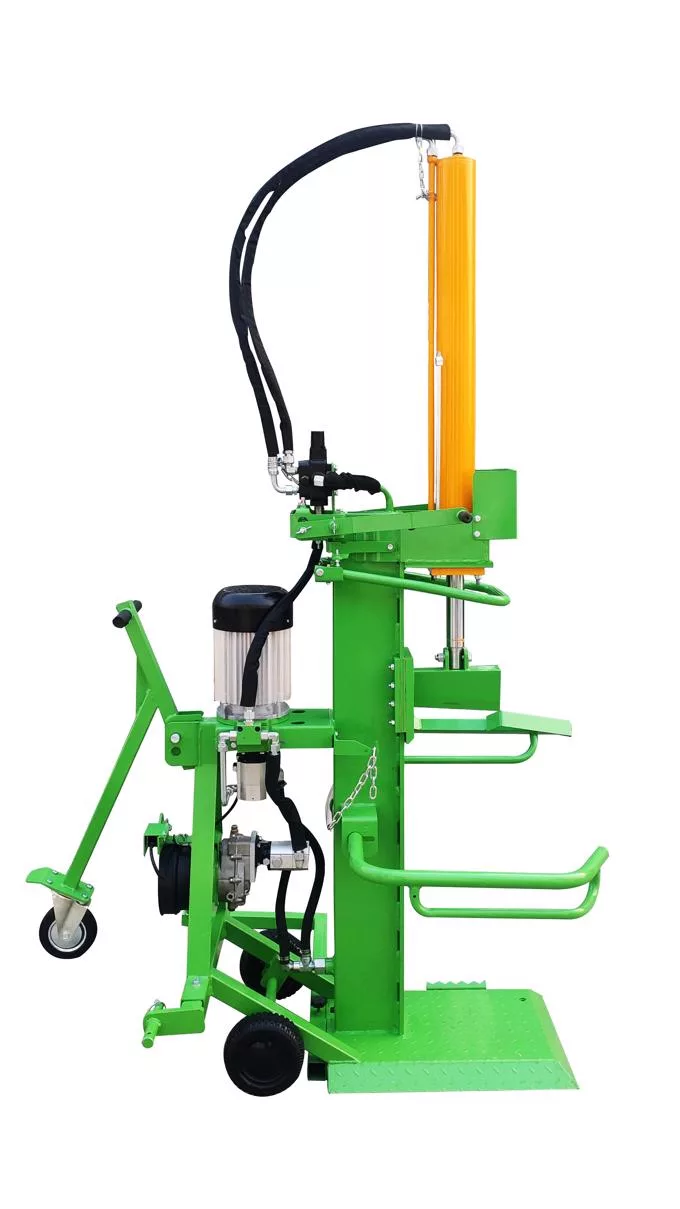

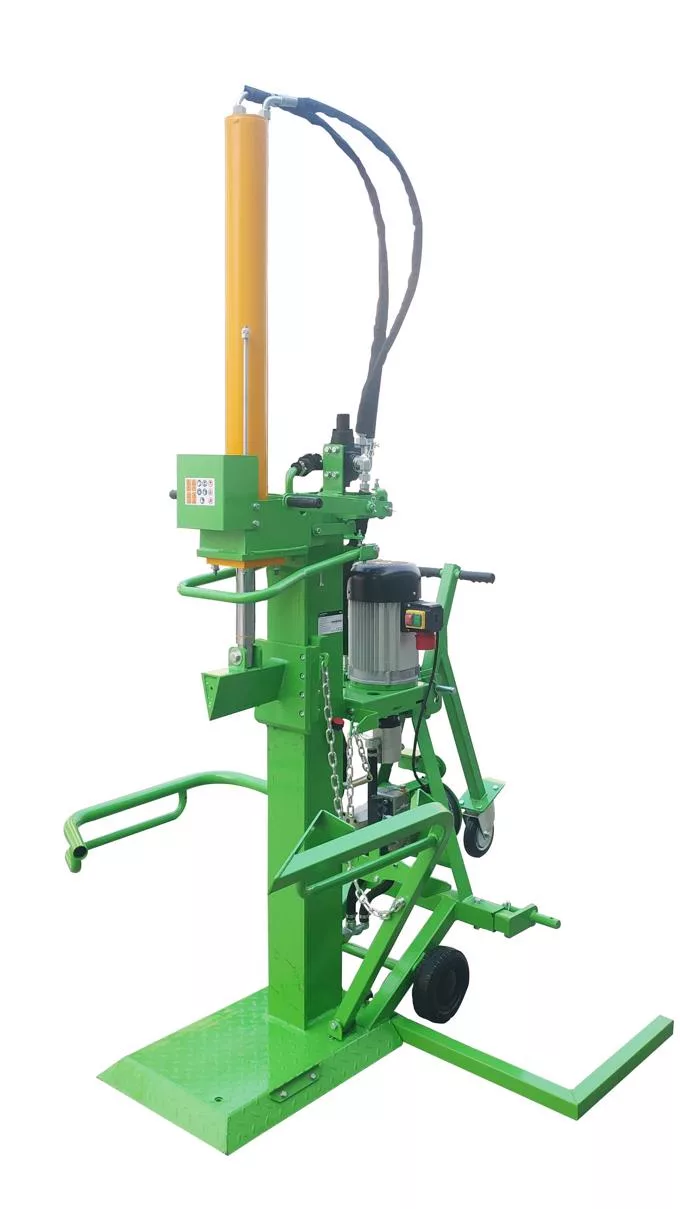

The professional Victory log splitters with up to 26 tons splitting force are equipped with a 3-point hitch for tractors and an additional 400V electric motor. The required PTO shaft for connection to the tractor is included in the delivery. For easy maneuvering of the 325kg heavy machine even without a tractor, the LS-26TEP is equipped with a chassis with large wheels. Since the LS-26TEP firewood splitter is very well balanced, the log splitter can be effortlessly transported with the chassis. For storage in lower rooms, the hydraulic cylinder can be lowered.


Technology of the log splitter with electric motor and PTO shaft for tractor and stationary operation:

The double-acting single-acting hydraulic cylinder provides full splitting force over the entire splitting path, so that even cross-branched wood can be easily processed by the LS-26TEP log splitter. Splitting thicker trunks also works effortlessly thanks to the long splitting wedge. The log splitter is powered by your tractor via the supplied PTO shaft or by the 400V electric motor. For operation via PTO shaft, a 540 rpm PTO speed of your tractor is required. The maximum available hydraulic pressure for the splitting wedge is 300 bar, and wood pieces with diameters from 80 to 500mm and 1000mm length can be split.


All Victory hydraulic log splitters are operated with two-hand safety control to ensure that hands are always outside the danger zone. If only one of the control levers is released, the splitting blade immediately stops. After the splitting process, the splitting blade automatically returns to the starting position in a time-saving manner, so you can already position the next log.


For the 2024 model year, we have further improved our LS-26TEP log splitter:

ATTENTION

Partially assembled machines delivered do NOT contain ANY operating fluids for transport logistics reasons. Also, lubrication points contain NO lubricants! Please pay attention to the corresponding instructions in the German operating manual BEFORE commissioning.
